R 754,40
inc. vat
In stock
SKU
5736397

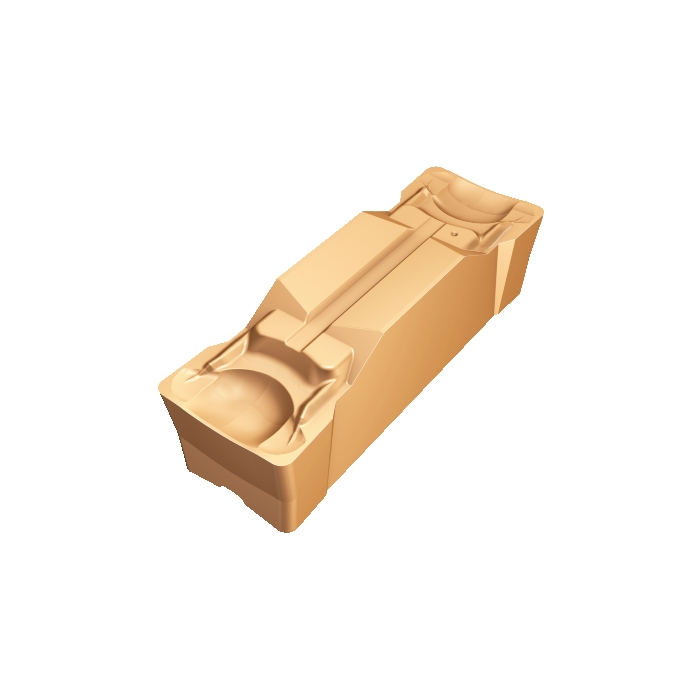

CoroCut® 1-2 insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 20.3g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 6.05mm |
CW - Cutting Width | 7.92mm |
CWTOLL - Cutting Width Lower Tolerance | -0.05mm |
CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
REL - Corner Radius Left | 0.3mm |
RER - Corner Radius Right | 0.3mm |
CDX - Cutting Depth Maximum | 28.7mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
LIG - Insert Gauge Length | 29.54mm |
ORDCODE | N123L2-0792-0003-GM 1125 |
CHANGEDATE | 2022-09-07 13:06:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 9 |
SSC - Insert Seat Size Code | L |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCL2_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | GM |
CEDC - Cutting Edge Count | 2 |
