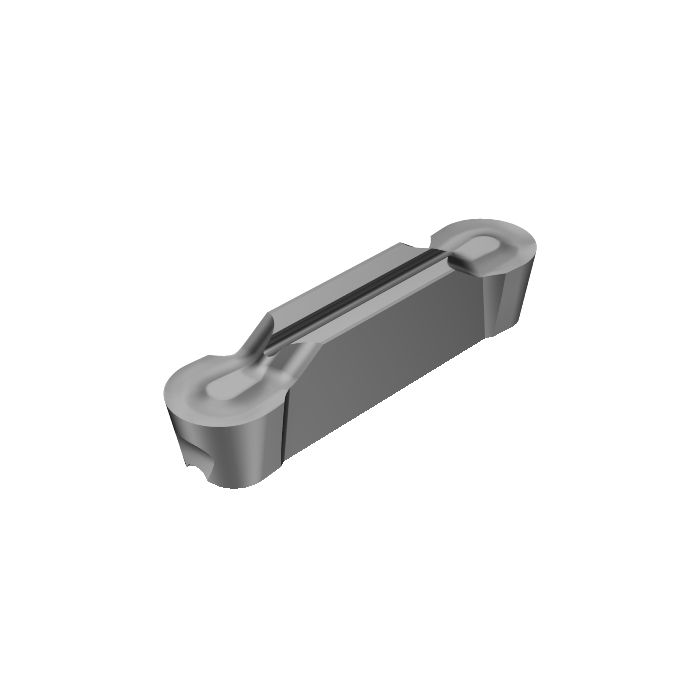

Sandvik Coromant N123L2-0800-AM H10 CoroCut™ 1-2 insert for profiling
R 764,75
inc. vat
In stock
SKU
5736386
CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 18.6g |
| KAPR - Tool Cutting Edge Angle | 95deg |
| RMPX - Maximum Ramping Angle | 90deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 4mm |
| Insert Thickness | 6.05mm |
| CW - Cutting Width | 8mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
| CDX - Cutting Depth Maximum | 27.3mm |
| APMX - Depth Of Cut Maximum | 3.8mm |
| RETOLL - Corner Radius Lower Tolerance | -0.02mm |
| RETOLU - Corner Radius Upper Tolerance | 0.02mm |
| LIG - Insert Gauge Length | 30.05mm |
| ORDCODE | N123L2-0800-AM H10 |
| CHANGEDATE | 2022-09-07 12:28:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 9 |
| SSC - Insert Seat Size Code | L |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCL2_1 |
| Grade | H10 |
| SUBSTRATE | HF |
| CBMD - Chip Breaker Manufacturer's Designation | AM |
| CEDC - Cutting Edge Count | 2 |
