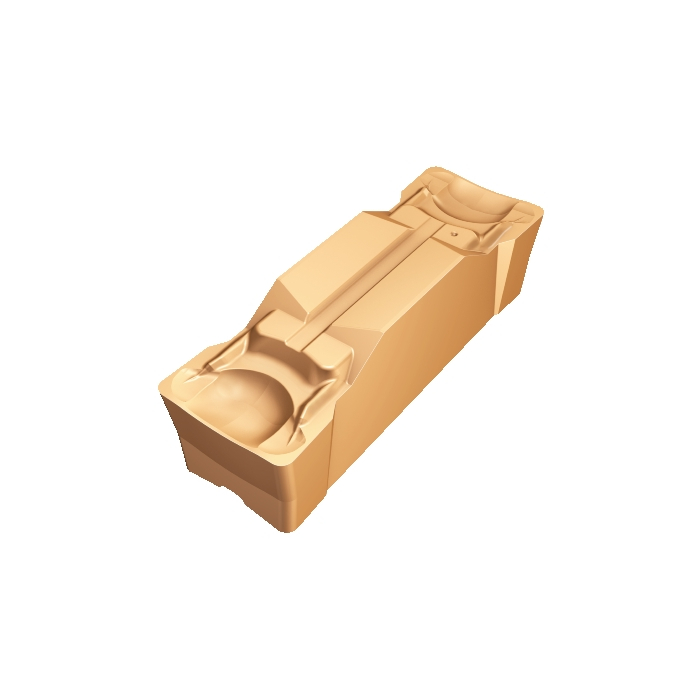

Sandvik Coromant N123M2-0900-0008-GM 1125 CoroCut™ 1-2 insert for grooving
R 792,35
inc. vat
In stock
SKU
5954931
CoroCut® 1-2 insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.028kg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| CW - Cutting Width | 9.05mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.1mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
| REL - Corner Radius Left | 0.8mm |
| RER - Corner Radius Right | 0.8mm |
| CDX - Cutting Depth Maximum | 28mm |
| RETOLL - Corner Radius Lower Tolerance | -0.1mm |
| RETOLU - Corner Radius Upper Tolerance | 0.1mm |
| LIG - Insert Gauge Length | 29.49mm |
| ORDCODE | N123M2-0900-0008-GM 1125 |
| CHANGEDATE | 2022-09-07 13:07:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 9 |
| SSC - Insert Seat Size Code | M |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCM2_1 |
| Grade | 1125 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | GM |
| CEDC - Cutting Edge Count | 2 |
