Sandvik Coromant N123T3-0070-0000-GS 1125 CoroCut™ 3 insert for grooving

R 730,25 inc. vat
In stock
SKU
5736568

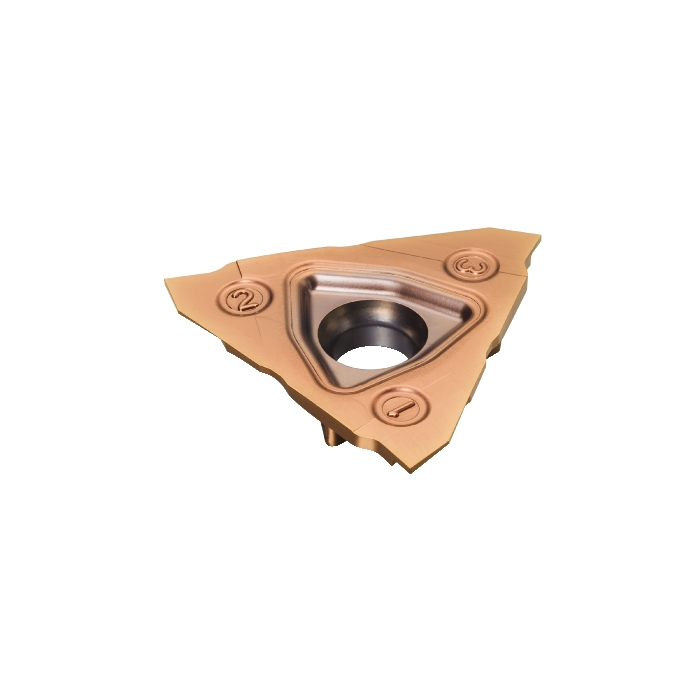

CoroCut® 3 insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 insert for grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.8g
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 7deg
Insert Thickness 3.73mm
CW - Cutting Width 0.7mm
CWTOLL - Cutting Width Lower Tolerance -0.02mm
CWTOLU - Cutting Width Upper Tolerance 0.02mm
REL - Corner Radius Left 0mm
RER - Corner Radius Right 0mm
CDX - Cutting Depth Maximum 1.7mm
RETOLL - Corner Radius Lower Tolerance 0mm
RETOLU - Corner Radius Upper Tolerance 0.05mm
CUTDIA - Work Piece Parting Diameter Maximum 100mm
ORDCODE N123T3-0070-0000-GS 1125
CHANGEDATE 2022-06-23 10:15:00.000
Hand N
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code T
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CDT_1
Grade 1125
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation GS
CEDC - Cutting Edge Count 3
