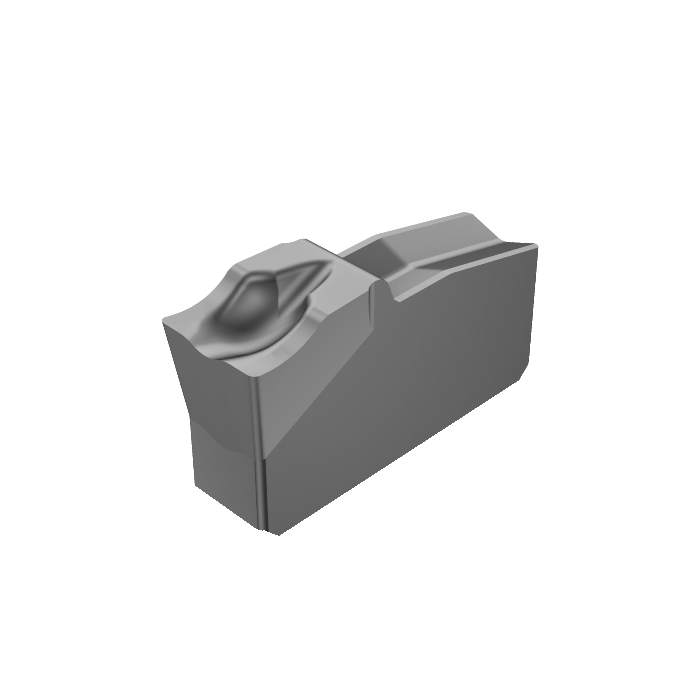

Sandvik Coromant N151.2-200-5E 1005 T-Max™ Q-Cut insert for parting
Next
Sandvik Coromant N123T3-0200-0001-CM 1125 CoroCut™ 3 insert for parting
Previous
R 190,90
inc. vat
In stock
SKU
5737167
T-Max® Q-Cut insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.7g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 5.617mm |
CW - Cutting Width | 2mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.25mm |
REL - Corner Radius Left | 0.2mm |
RER - Corner Radius Right | 0.2mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
ORDCODE | N151.2-200-5E H13A |
CHANGEDATE | 2022-06-23 10:20:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 20 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G20_1 |
Grade | H13A |
SUBSTRATE | HW |
CBMD - Chip Breaker Manufacturer's Designation | 5E |
CEDC - Cutting Edge Count | 1 |
