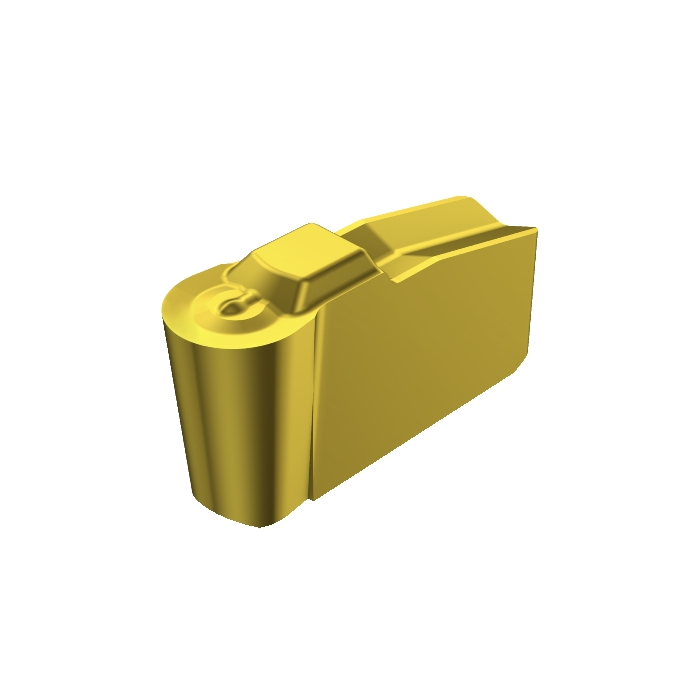

Sandvik Coromant N151.2-600-50-4P 1005 T-Max™ Q-Cut insert for profiling
R 358,80
inc. vat
In stock
SKU
5738152
T-Max® Q-Cut insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.7g |
| KAPR - Tool Cutting Edge Angle | 105deg |
| RMPX - Maximum Ramping Angle | 90deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 3mm |
| Insert Thickness | 8.106mm |
| CW - Cutting Width | 6mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
| APMX - Depth Of Cut Maximum | 2.7mm |
| RETOLL - Corner Radius Lower Tolerance | -0.02mm |
| RETOLU - Corner Radius Upper Tolerance | 0.02mm |
| ORDCODE | N151.2-600-50-4P 1005 |
| CHANGEDATE | 2022-06-23 10:27:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 7 |
| SSC - Insert Seat Size Code | 50 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G50_1 |
| Grade | 1005 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 4P |
| CEDC - Cutting Edge Count | 1 |
