R 354,20
inc. vat
In stock
SKU
5738276

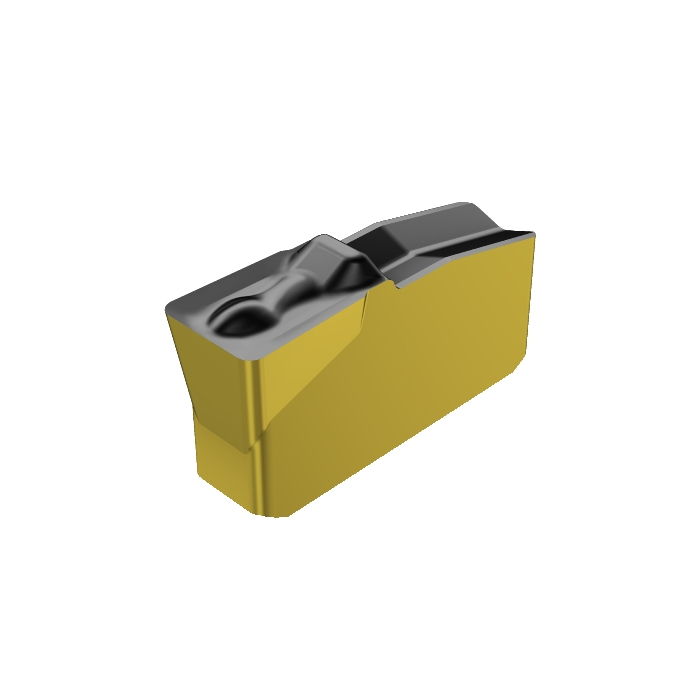

T-Max® Q-Cut insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 8.1g |
KAPR - Tool Cutting Edge Angle | 92.5deg |
RMPX - Maximum Ramping Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 10.318mm |
CW - Cutting Width | 6mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
REL - Corner Radius Left | 0.8mm |
RER - Corner Radius Right | 0.8mm |
APMX - Depth Of Cut Maximum | 2.7mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
ORDCODE | N151.2-6008-60-4T 4225 |
CHANGEDATE | 2022-06-23 10:28:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 60 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G60_1 |
Grade | 4225 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 4T |
CEDC - Cutting Edge Count | 1 |
