Sandvik Coromant N151.2-A097-25-4G 235 T-Max™ Q-Cut insert for grooving
Next
Sandvik Coromant N151.2-A097-25-4G 1125 T-Max™ Q-Cut insert for grooving
Previous
R 295,55
inc. vat
In stock
SKU
5737130
T-Max® Q-Cut insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

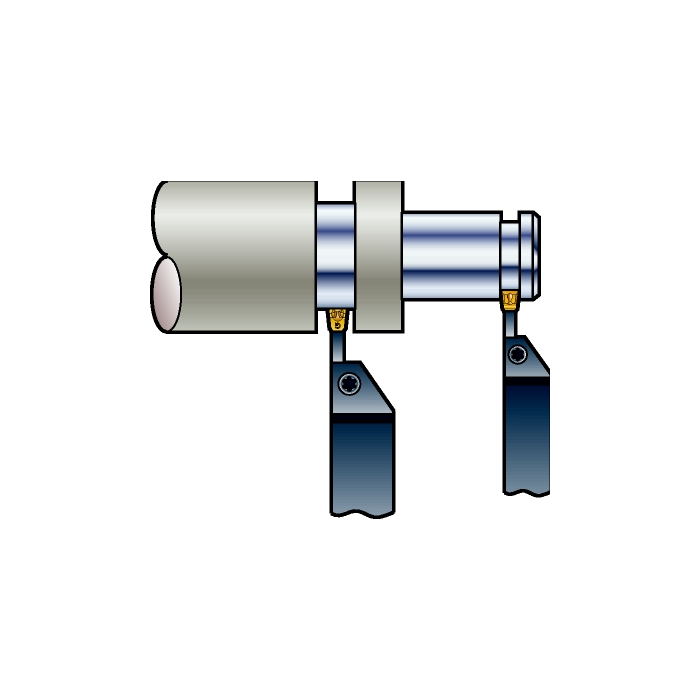

T-Max® Q-Cut insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1.5g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 6.787mm |
CW - Cutting Width | 3.175mm |
CWTOLL - Cutting Width Lower Tolerance | -0.02032mm |
CWTOLU - Cutting Width Upper Tolerance | 0.02032mm |
REL - Corner Radius Left | 0.1905mm |
RER - Corner Radius Right | 0.1905mm |
RETOLL - Corner Radius Lower Tolerance | -0.0508mm |
RETOLU - Corner Radius Upper Tolerance | 0.0508mm |
ORDCODE | N151.2-A125-25-4G 1125 |
CHANGEDATE | 2022-06-23 10:20:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 25 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G25_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 4G |
CEDC - Cutting Edge Count | 1 |
