Sandvik Coromant N151.3-265-25-4G H13A T-Max™ Q-Cut insert for grooving
Next
Sandvik Coromant N151.3-185-20-4G 235 T-Max™ Q-Cut insert for grooving
Previous
![Sandvik Coromant N151.3-265-25-4G H13A T-Max™ Q-Cut insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47351959f/sandvik-coromant-n151-3-265-25-4g-h13a-t-maxtm-q-cut-insert-for-grooving.jpg)
![Sandvik Coromant N151.3-185-20-4G 235 T-Max™ Q-Cut insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47349df00/sandvik-coromant-n151-3-185-20-4g-235-t-maxtm-q-cut-insert-for-grooving.jpg)
R 287,50
inc. vat
In stock
SKU
5737339
T-Max® Q-Cut insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

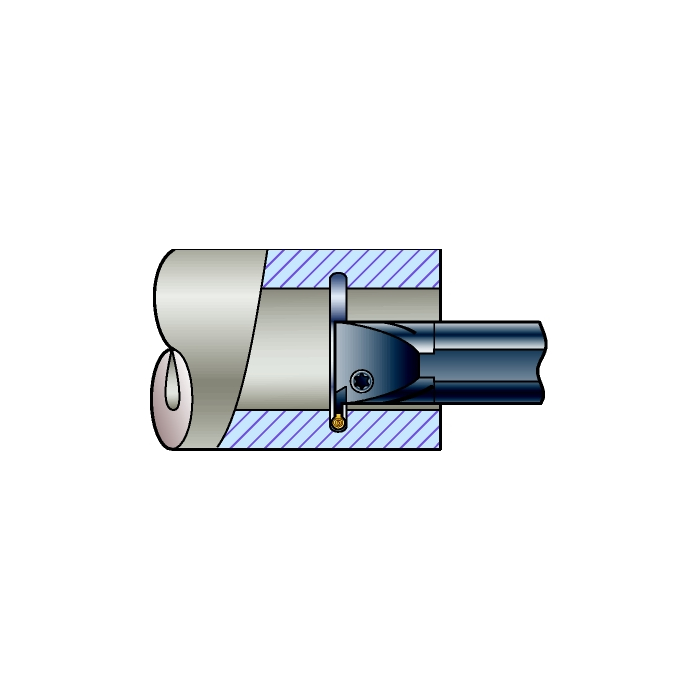

T-Max® Q-Cut insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.6g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 11deg |
Insert Thickness | 4.783mm |
CW - Cutting Width | 2.15mm |
CWTOLL - Cutting Width Lower Tolerance | 0.09mm |
CWTOLU - Cutting Width Upper Tolerance | 0.13mm |
REL - Corner Radius Left | 0.15mm |
RER - Corner Radius Right | 0.15mm |
RETOLL - Corner Radius Lower Tolerance | -0.05mm |
RETOLU - Corner Radius Upper Tolerance | 0.05mm |
ORDCODE | N151.3-215-20-4G 1125 |
CHANGEDATE | 2022-06-23 10:21:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 20 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB3G20_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 4G |
CEDC - Cutting Edge Count | 1 |
