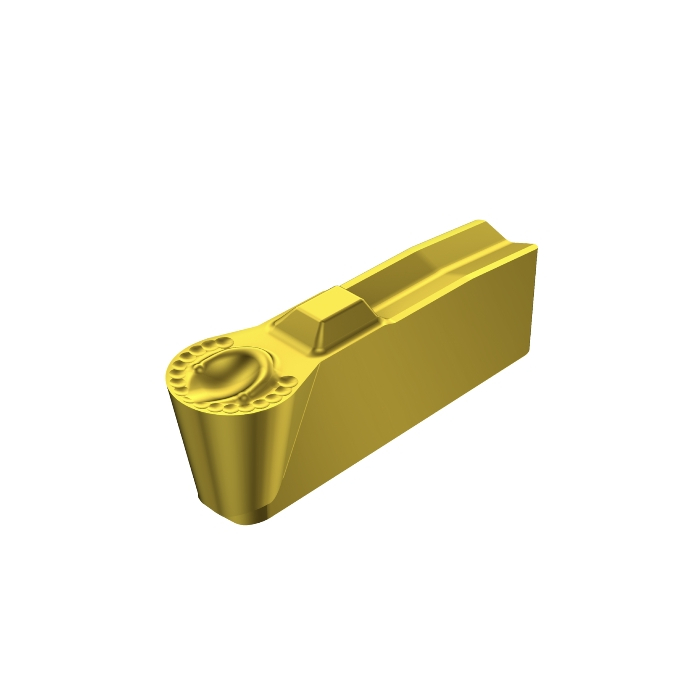

Sandvik Coromant N151.3-400-30-7P 2135 T-Max™ Q-Cut insert for profiling
R 274,85
inc. vat
In stock
SKU
5736995
T-Max® Q-Cut insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.4g |
| KAPR - Tool Cutting Edge Angle | 110deg |
| RMPX - Maximum Ramping Angle | 90deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 8deg |
| RE - Corner Radius | 2mm |
| Insert Thickness | 5.287mm |
| CW - Cutting Width | 4mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.05mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
| APMX - Depth Of Cut Maximum | 1.7mm |
| RETOLL - Corner Radius Lower Tolerance | -0.02mm |
| RETOLU - Corner Radius Upper Tolerance | 0.02mm |
| ORDCODE | N151.3-400-30-7P 2135 |
| CHANGEDATE | 2022-06-23 10:18:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 7 |
| SSC - Insert Seat Size Code | 30 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB3F30_1 |
| Grade | 2135 |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 7P |
| CEDC - Cutting Edge Count | 1 |
