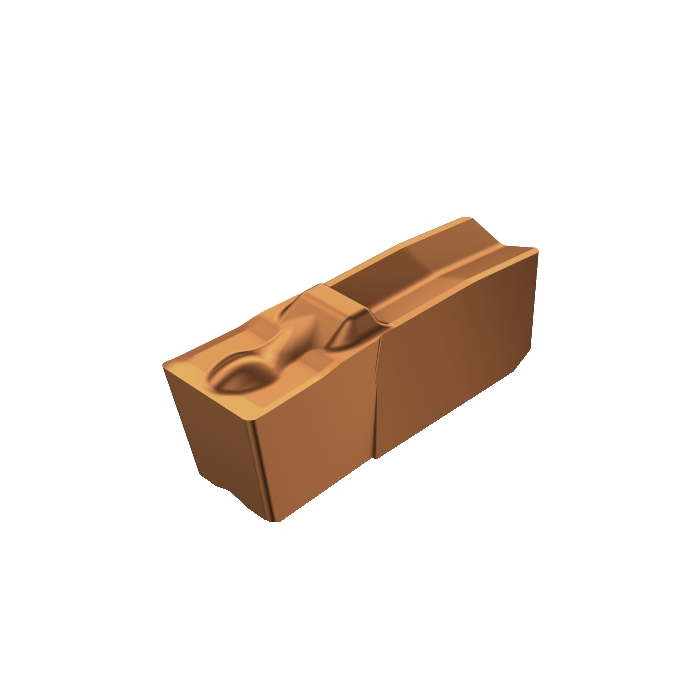

Sandvik Coromant N151.3-400-40-4G 1145 T-Max™ Q-Cut insert for grooving

R 370,30 inc. vat
In stock
SKU
5736966
T-Max® Q-Cut insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.5g
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 11deg
Insert Thickness 6.106mm
CW - Cutting Width 4mm
CWTOLL - Cutting Width Lower Tolerance -0.02mm
CWTOLU - Cutting Width Upper Tolerance 0.02mm
REL - Corner Radius Left 0.2mm
RER - Corner Radius Right 0.2mm
RETOLL - Corner Radius Lower Tolerance -0.05mm
RETOLU - Corner Radius Upper Tolerance 0.05mm
ORDCODE N151.3-400-40-4G 1145
CHANGEDATE 2022-06-23 10:18:00.000
Hand N
IFS - Insert Mounting Style Code 7
SSC - Insert Seat Size Code 40
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CB3G40_1
Grade 1145
COATING PVD TiAlN+TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation 4G
CEDC - Cutting Edge Count 1
