Sandvik Coromant NFHDG150-590-24 CoroCut™ 1-2 shank tool for parting and grooving
R 4 280,30
inc. vat
Out of stock
SKU
5736064

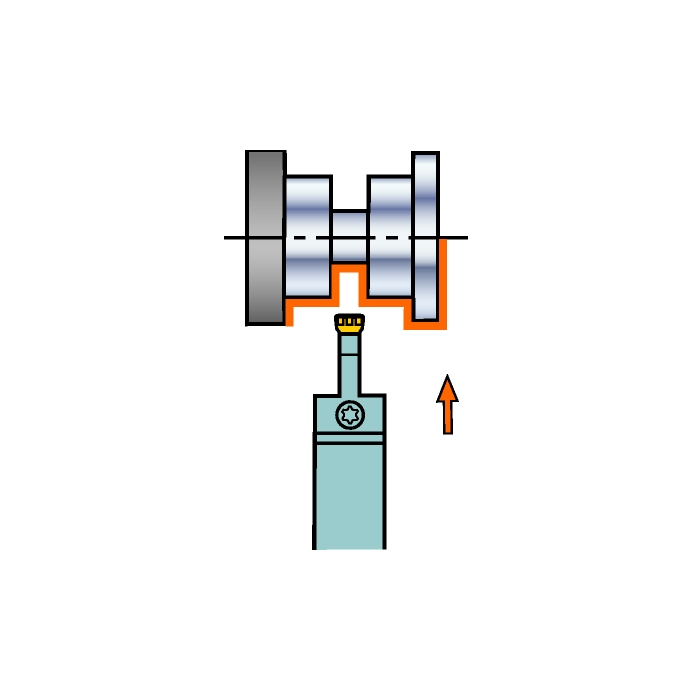

CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 215.9mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 2.3kg |
| OAL - Overall Length | 215.9mm |
| OHX - Maximum Overhang | 66.04mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 26.416mm |
| HF - Functional Height | 38.1mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 7.5mm |
| H - Shank Height | 38.1mm |
| CW - Cutting Width | 14.986mm |
| B - Shank Width | 38.1mm |
| CDX - Cutting Depth Maximum | 38.1mm |
| ORDCODE | NFHDG150-590-24 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B2424_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 23:37:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CBHDG_1 |
| Hand | N |
| MIID - Master Insert Identification | HDG-590047 |
| SSC - Insert Seat Size Code | 59 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
