Sandvik Coromant PRGCR 3225P 12 T-Max™ P shank tool for turning Previous Sandvik Coromant PRGCR 3225P 12 T-Max™ P shank tool for turning

Sandvik Coromant PRGCR 3225P 16 T-Max™ P shank tool for turning

R 2 003,30 inc. vat
In stock
SKU
5738292
T-Max® P shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 170mm
TQ - Torque 4Nm
WT - Weight Of Item 1.004kg
OAL - Overall Length 170mm
OHX - Maximum Overhang 33.2mm
LSC - Clamping Length 136.8mm
RMPX - Maximum Ramping Angle 27deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 32mm
HF - Functional Height 32mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 16mm
RE - Corner Radius 8mm
Insert Thickness 6.35mm
H - Shank Height 32mm
B - Shank Width 25mm
ORDCODE PRGCR 3225P 16
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A3225_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:35:00.000
MTP - Clamping Type Code P
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_RC1606M_3
Hand R

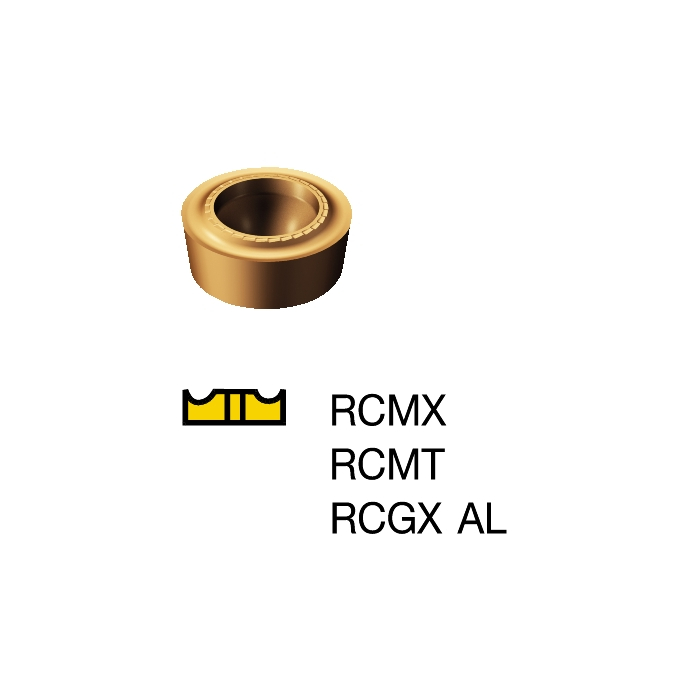

MIID - Master Insert Identification RCMX 16 06 00
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code R
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
