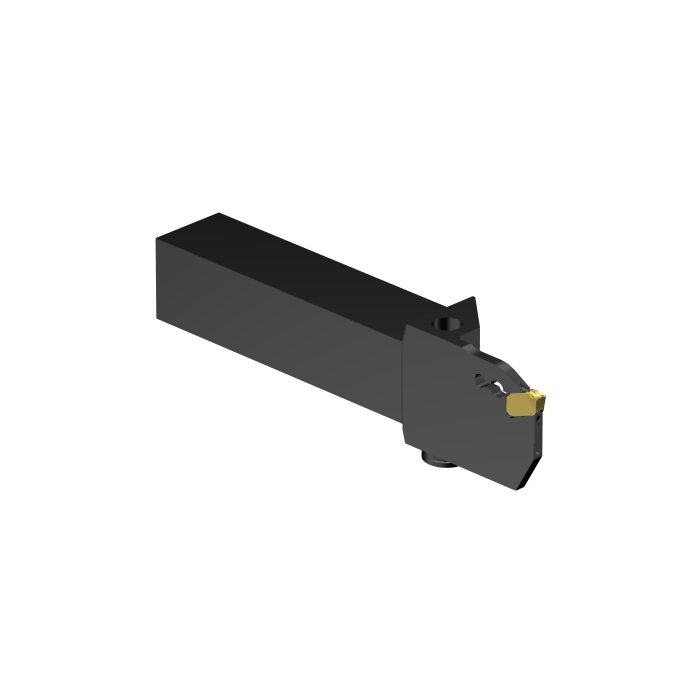

Sandvik Coromant QD-LFH1300C16A CoroCut™ QD shank tool for parting & grooving

Name: Sandvik Coromant QD-LFH1300C16A CoroCut™ QD shank tool for parting & grooving
SKU: 6976224
Price: 4348.15 ZAR
Availability: InStock

Be the first to review this product

R 4 348,15 inc. vat

In stock

SKU

6976224

CoroCut® QD shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® QD shank tool for parting and grooving

More Information

More Information
CP - Coolant Pressure	15000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
WT - Weight Of Item	0.618kg
OAL - Overall Length	152.4mm
OHX - Maximum Overhang	43mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	25.65mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4mm
H - Shank Height	25.4mm
CW - Cutting Width	4mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	33.02mm
ORDCODE	QD-LFH1300C16A
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:27:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CMH_1
Hand	L
MIID - Master Insert Identification	QD-NH-0400-0002-CM
SSC - Insert Seat Size Code	H
CNT - Coolant Entry Thread Size	G 1/8-28
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
