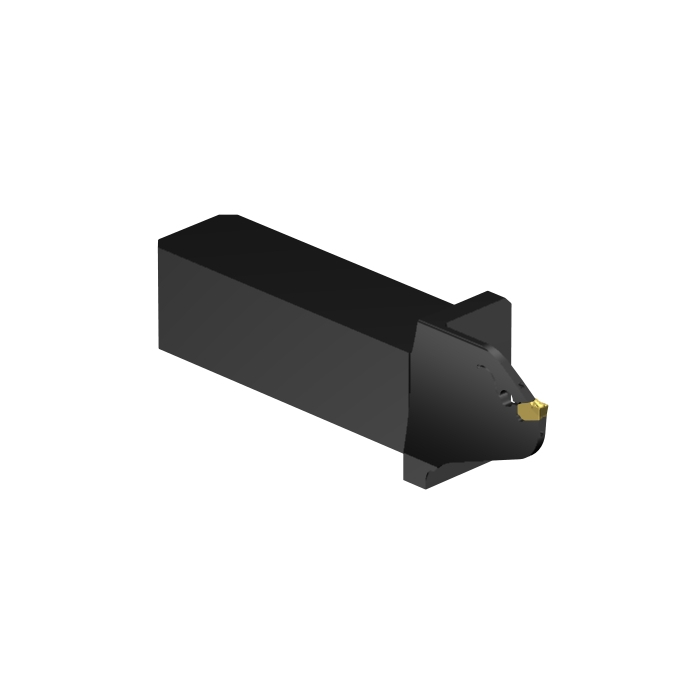

Sandvik Coromant QFU-LFG120C16-100B CoroCut™ QF QS shank tool for face grooving
R 5 733,90
inc. vat
In stock
SKU
7192459
CoroCut® QF QS shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QF QS shank tool for face grooving
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 132mm |
| WT - Weight Of Item | 0.456kg |
| OAL - Overall Length | 132mm |
| OHX - Maximum Overhang | 40mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 40mm |
| WF - Functional Width | 26mm |
| HF - Functional Height | 25.4mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 3.5mm |
| H - Shank Height | 25.4mm |
| CW - Cutting Width | 3mm |
| B - Shank Width | 25.4mm |
| CDX - Cutting Depth Maximum | 30.48mm |
| DAXN - Minimum Axial Groove Outside Diameter | 106mm |
| DAXX - Maximum Axial Groove Outside Diameter | 156mm |
| HBL - Head Bottom Offset Length | 40mm |
| ORDCODE | QFU-LFG120C16-100B |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1616_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:18:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CNUG_1 |
| Hand | L |
| MIID - Master Insert Identification | QFU-G-0300-03-TF |
| SSC - Insert Seat Size Code | QFU-G |
| CNT - Coolant Entry Thread Size | G 1/8-28 |
| CICT - Cutting Item Count | 1 |
| AXGSUP - Axial Groove Support Direction | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
