R 5 733,90
inc. vat
In stock
SKU
7192420

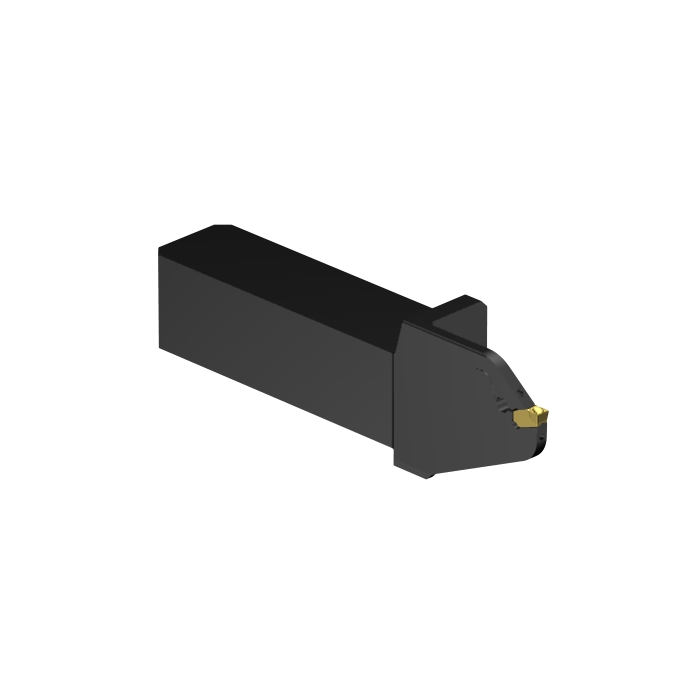

CoroCut® QF QS shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QF QS shank tool for face grooving
CP - Coolant Pressure | 15000000Pa |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 131.6mm |
WT - Weight Of Item | 452g |
OAL - Overall Length | 131.6mm |
OHX - Maximum Overhang | 47.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 47.6mm |
WF - Functional Width | 25.5mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 3.5mm |
H - Shank Height | 25mm |
CW - Cutting Width | 4mm |
B - Shank Width | 25mm |
CDX - Cutting Depth Maximum | 38mm |
DAXN - Minimum Axial Groove Outside Diameter | 508mm |
DAXX - Maximum Axial Groove Outside Diameter | 2000mm |
HBL - Head Bottom Offset Length | 47.6mm |
ORDCODE | QFU-LFH38C2525-500B |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:17:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CNUH_1 |
Hand | L |
MIID - Master Insert Identification | QFU-H-0400-03-TF |
SSC - Insert Seat Size Code | QFU-H |
CNT - Coolant Entry Thread Size | G 1/8-28 |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
