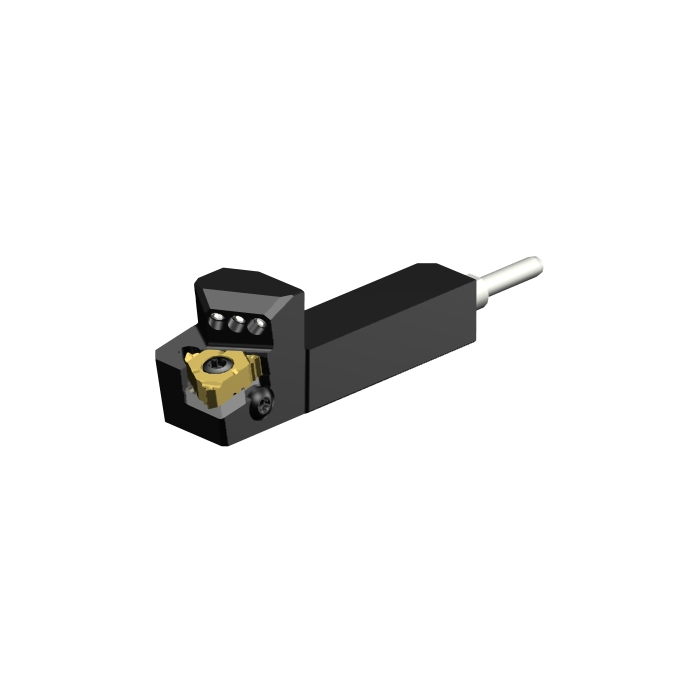

Sandvik Coromant QS-266RFA-083HP CoroThread™ 266 QS shank tool for thread turning

Name: Sandvik Coromant QS-266RFA-083HP CoroThread™ 266 QS shank tool for thread turning
SKU: 6224900
Price: 4215.90 ZAR
Availability: InStock

Be the first to review this product

R 4 215,90 inc. vat

In stock

SKU

6224900

CoroThread® 266 QS shank tool for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroThread® 266 QS shank tool for thread turning

More Information

More Information
CP - Coolant Pressure	8000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
TQ - Torque	2.2Nm
WT - Weight Of Item	0.104kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	25mm
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	12.7mm
HF - Functional Height	12.7mm
GAMO - Orthogonal Rake Angle	-10deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
H - Shank Height	12.7mm
B - Shank Width	12.7mm
ALP - Axial Clearance Angle	-10deg
THCA - Thread Helix Correction Angle	1deg
ORDCODE	QS-266RFA-083HP
ADINTMS - Adaptive Interface Machine Direction	M_PMC10_B0808_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	8
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:05:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TCE16L_2
Hand	R
MIID - Master Insert Identification	266.RG-16..
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
