Sandvik Coromant QS-CP-30AR-16-11C CoroTurn™ Prime QS shank tool for turning

Name: Sandvik Coromant QS-CP-30AR-16-11C CoroTurn™ Prime QS shank tool for turning
SKU: 7100724
Price: 4784.00 ZAR
Availability: InStock

Be the first to review this product

R 4 784,00 inc. vat

In stock

SKU

7100724

CoroTurn® Prime QS shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® Prime QS shank tool for turning

More Information

More Information
CP - Coolant Pressure	15000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	114.1mm
TQ - Torque	4Nm
WT - Weight Of Item	0.5kg
OAL - Overall Length	114.1mm
OHX - Maximum Overhang	55.1mm
LSC - Clamping Length	83.1mm
KAPR - Tool Cutting Edge Angle	30deg
RMPX - Maximum Ramping Angle	15deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	31mm
WF - Functional Width	31.75mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	11mm
RE - Corner Radius	0.79375mm
Insert Thickness	6mm
H - Shank Height	25.4mm
B - Shank Width	25.4mm
APMX - Depth Of Cut Maximum	1.5mm
HBL - Head Bottom Offset Length	30.1mm
ORDCODE	QS-CP-30AR-16-11C
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:16:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TKA11_1
Hand	R
MIID - Master Insert Identification	CP-A1108
IFS - Insert Mounting Style Code	3

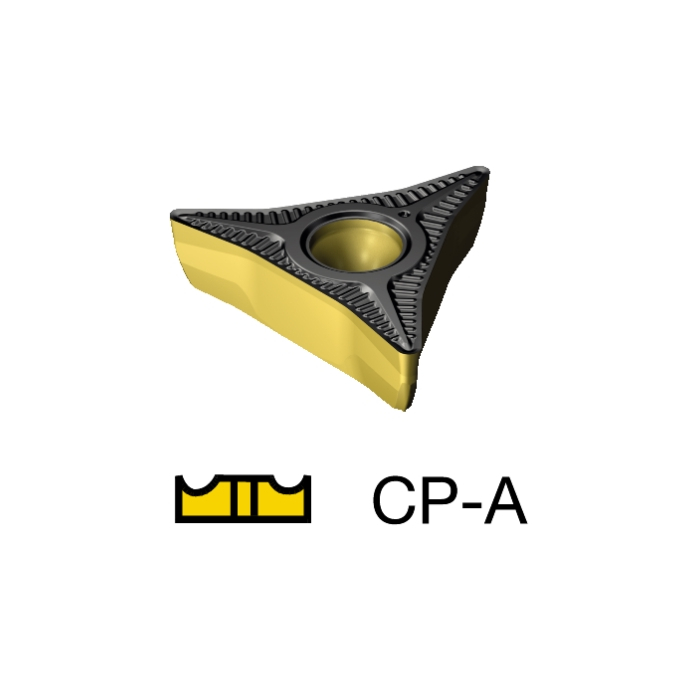

SSC - Insert Seat Size Code	CP-A
CNT - Coolant Entry Thread Size	G 1/8-28
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
