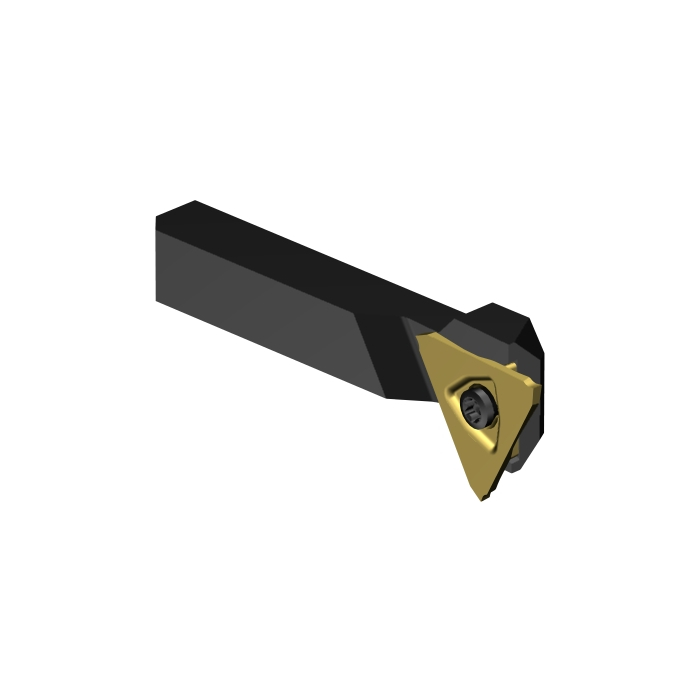

Sandvik Coromant QS-LF123U06-1010B CoroCut™ 3 QS shank tool for parting and grooving

R 2 888,80 inc. vat
Out of stock
SKU
5738723
CoroCut® 3 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 QS shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 70mm
TQ - Torque 3Nm
WT - Weight Of Item 0.046kg
OAL - Overall Length 70mm
OHX - Maximum Overhang 31.7mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 10mm
HF - Functional Height 10mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 5.64mm
H - Shank Height 10mm
CW - Cutting Width 1.5mm
B - Shank Width 10mm
CDX - Cutting Depth Maximum 6.4mm
ORDCODE QS-LF123U06-1010B
ADINTMS - Adaptive Interface Machine Direction M_PMC09_A1010_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:43:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CDU_1
Hand L
MIID - Master Insert Identification N123U3-0150- CM
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code U
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
