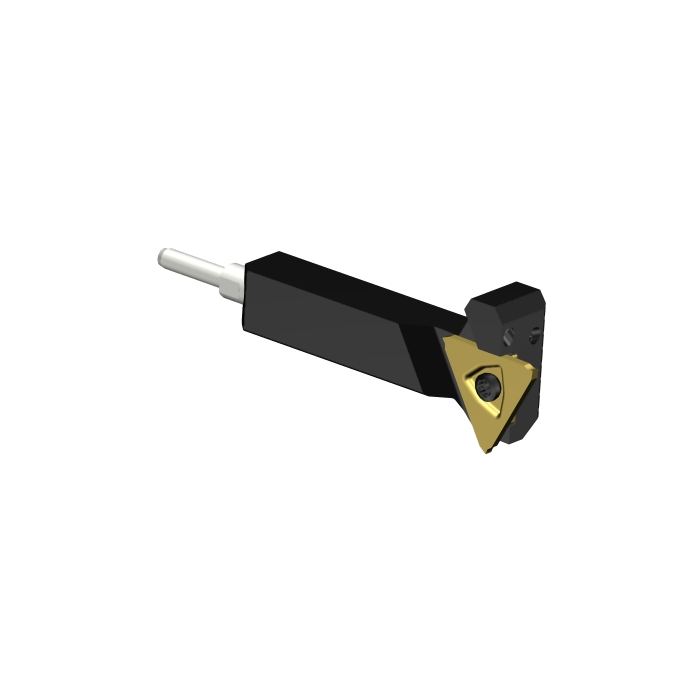

Sandvik Coromant QS-LF123U06-1212BHP CoroCut™ 3 QS shank tool for parting & grooving

Name: Sandvik Coromant QS-LF123U06-1212BHP CoroCut™ 3 QS shank tool for parting & grooving
SKU: 6010188
Price: 4621.85 ZAR
Availability: InStock

Be the first to review this product

R 4 621,85 inc. vat

In stock

SKU

6010188

CoroCut® 3 QS shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 3 QS shank tool for parting and grooving

More Information

More Information
CP - Coolant Pressure	8000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
TQ - Torque	3Nm
WT - Weight Of Item	0.075kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	23mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	12mm
HF - Functional Height	12mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	5.64mm
H - Shank Height	12mm
CW - Cutting Width	1.5mm
B - Shank Width	12mm
CDX - Cutting Depth Maximum	6.4mm
ORDCODE	QS-LF123U06-1212BHP
ADINTMS - Adaptive Interface Machine Direction	M_PMC10_A1212_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	7
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:03:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CDU_1
Hand	L
MIID - Master Insert Identification	N123U3-0150- CM
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	U
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
