Sandvik Coromant QS-QD-RFB0375C06S CoroCut™ QD QS shank tool for parting & grooving
Next
Sandvik Coromant QS-QD-LFD0625C10S CoroCut™ QD QS shank tool for parting & grooving
Previous


R 4 705,80
inc. vat
In stock
SKU
6914214

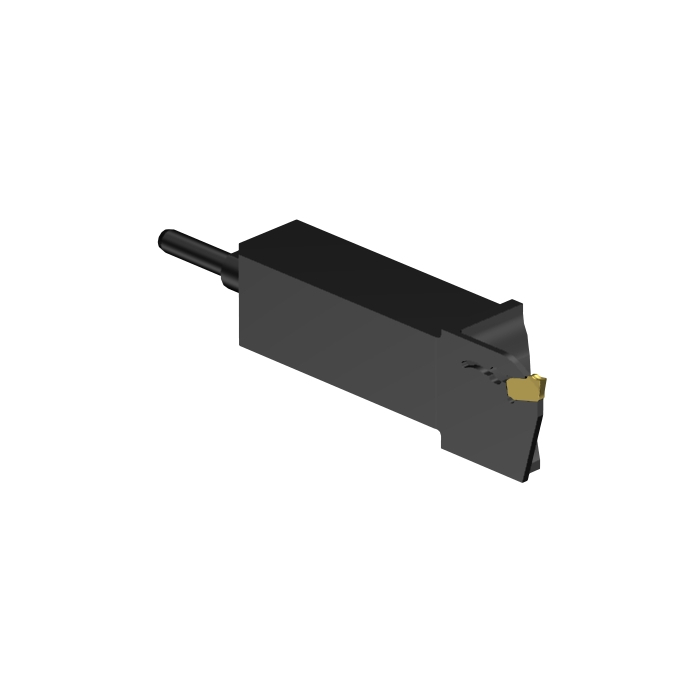

CoroCut® QD QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QD QS shank tool for parting and grooving
CP - Coolant Pressure | 8000000Pa |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
WT - Weight Of Item | 0.111kg |
OAL - Overall Length | 92mm |
OHX - Maximum Overhang | 25mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 16mm |
HF - Functional Height | 16mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 3.3mm |
H - Shank Height | 16mm |
CW - Cutting Width | 1.5mm |
B - Shank Width | 16mm |
CDX - Cutting Depth Maximum | 16mm |
CUTDIA - Work Piece Parting Diameter Maximum | 32mm |
ORDCODE | QS-QD-LFD16C1616S |
ADINTMS - Adaptive Interface Machine Direction | M_PMC10_A1616_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-07 11:07:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CMD_1 |
Hand | L |
MIID - Master Insert Identification | QD-ND-0150-0001-CM |
SSC - Insert Seat Size Code | D |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
