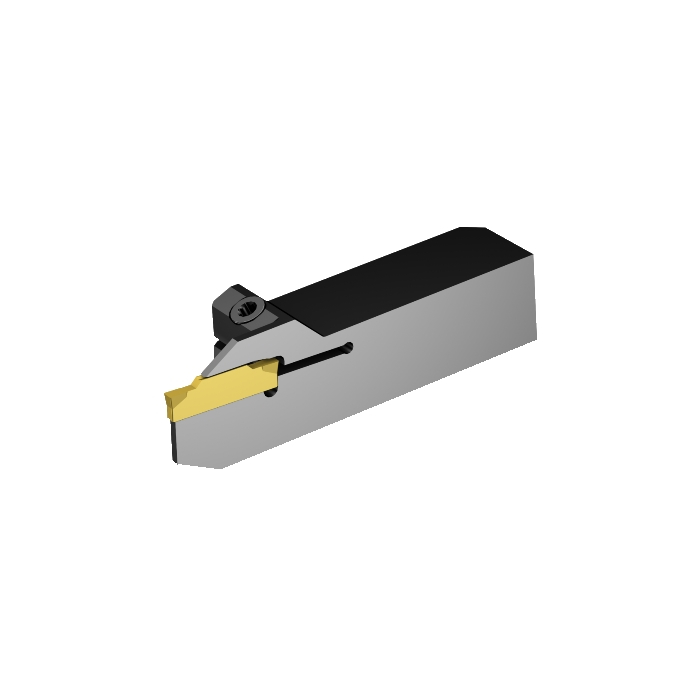

Sandvik Coromant QS-RF123D10-1010B CoroCut™ 1-2 QS shank tool for parting and grooving

R 2 888,80 inc. vat
In stock
SKU
5738667
CoroCut® 1-2 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 QS shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 70mm
TQ - Torque 2.5Nm
WT - Weight Of Item 0.06kg
OAL - Overall Length 70mm
OHX - Maximum Overhang 18mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 10mm
HF - Functional Height 10mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.1mm
H - Shank Height 10mm
CW - Cutting Width 1.5mm
B - Shank Width 10mm
CDX - Cutting Depth Maximum 10mm
CUTDIA - Work Piece Parting Diameter Maximum 20mm
ORDCODE QS-RF123D10-1010B
ADINTMS - Adaptive Interface Machine Direction M_PMC09_A1010_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:43:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCD2_2
Hand R
MIID - Master Insert Identification N123D2-0150-0002-CM
SSC - Insert Seat Size Code D
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
