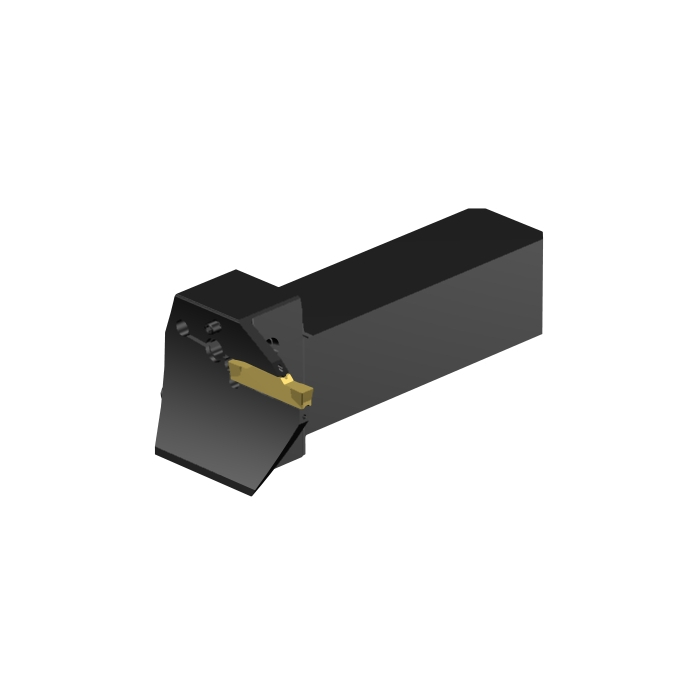

Sandvik Coromant QS-RG123H075C16E-132B CoroCut™ 1-2 QS shank tool for face grooving

Name: Sandvik Coromant QS-RG123H075C16E-132B CoroCut™ 1-2 QS shank tool for face grooving
SKU: 6838587
Price: 6204.25 ZAR
Availability: OutOfStock

Be the first to review this product

R 6 204,25 inc. vat

Out of stock

SKU

6838587

CoroCut® 1-2 QS shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 QS shank tool for face grooving

More Information

More Information
CP - Coolant Pressure	15000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	106mm
WT - Weight Of Item	549g
OAL - Overall Length	109.66mm
OHX - Maximum Overhang	47.4mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
OHN - Minimum Overhang	22mm
WF - Functional Width	46.45mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	25.4mm
CW - Cutting Width	4mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	19.05mm
DAXN - Minimum Axial Groove Outside Diameter	140mm
DAXX - Maximum Axial Groove Outside Diameter	230mm
ORDCODE	QS-RG123H075C16E-132B
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-05-16 17:35:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCH2_5
Hand	R
MIID - Master Insert Identification	N123H2-0400-0004-TF
SSC - Insert Seat Size Code	H
CNT - Coolant Entry Thread Size	G 1/8-28
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
