Sandvik Coromant QS-SVJBL1212E11-B1 CoroTurn™ 107 QS shank tool for turning

R 2 364,40 inc. vat
In stock
SKU
5737948
CoroTurn® 107 QS shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 QS shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 70mm
TQ - Torque 0.9Nm
WT - Weight Of Item 82.6g
OAL - Overall Length 70mm
OHX - Maximum Overhang 26mm
LSC - Clamping Length 44mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 50deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 12mm
HF - Functional Height 12mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 5deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.396875mm
Insert Thickness 3.175mm
H - Shank Height 12mm
B - Shank Width 12mm
ORDCODE QS-SVJBL1212E11-B1
ADINTMS - Adaptive Interface Machine Direction M_PMC09_A1212_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:42:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_VB1103_1
Hand L

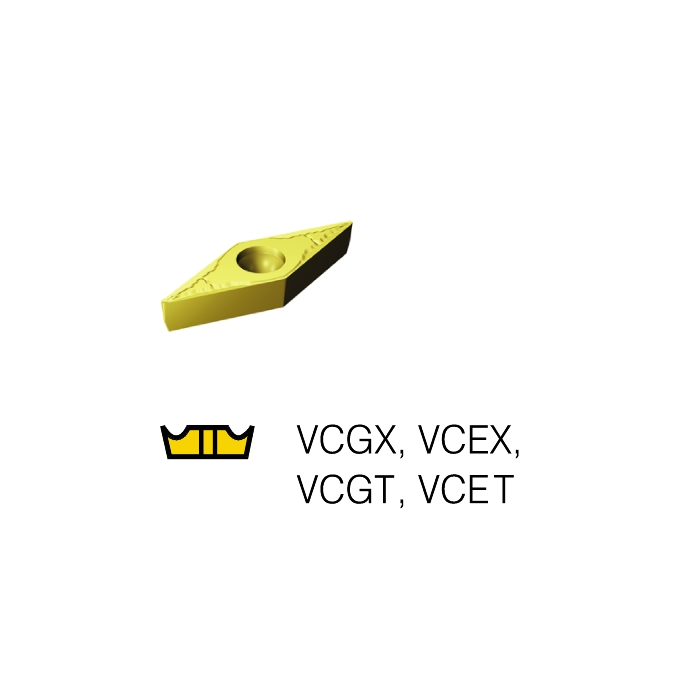

MIID - Master Insert Identification VBMT 11 03 04
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code V
SSC - Insert Seat Size Code 11
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
