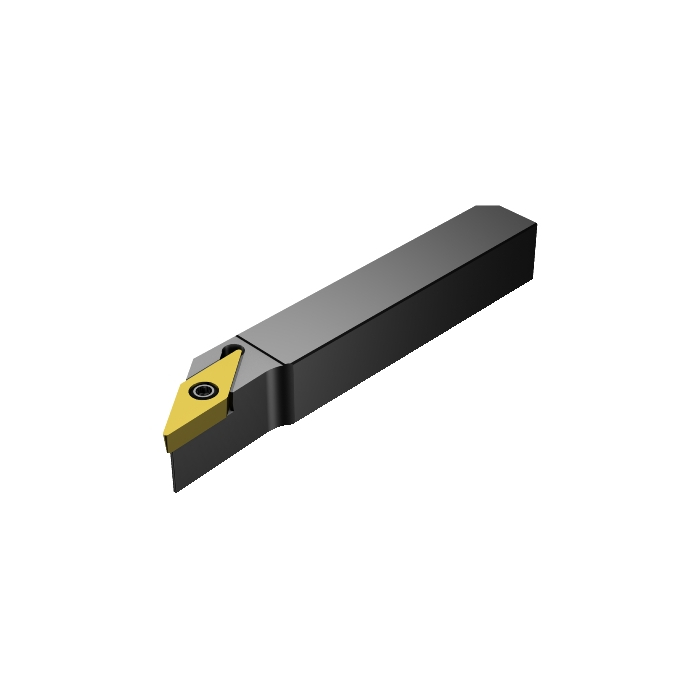

Sandvik Coromant QS-SVJBR 082X-B1 CoroTurn™ 107 QS shank tool for turning
R 2 364,40
inc. vat
In stock
SKU
5738212
CoroTurn® 107 QS shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 QS shank tool for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 70mm |
| TQ - Torque | 0.9Nm |
| WT - Weight Of Item | 0.096kg |
| OAL - Overall Length | 70mm |
| OHX - Maximum Overhang | 20mm |
| LSC - Clamping Length | 50mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 50deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 12.7mm |
| HF - Functional Height | 12.7mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.396875mm |
| Insert Thickness | 3.175mm |
| H - Shank Height | 12.7mm |
| B - Shank Width | 12.7mm |
| ORDCODE | QS-SVJBR 082X-B1 |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC09_B0808_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:42:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_VB1103_1 |
| Hand | R |
| MIID - Master Insert Identification | VBMT 11 03 04 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 11 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
