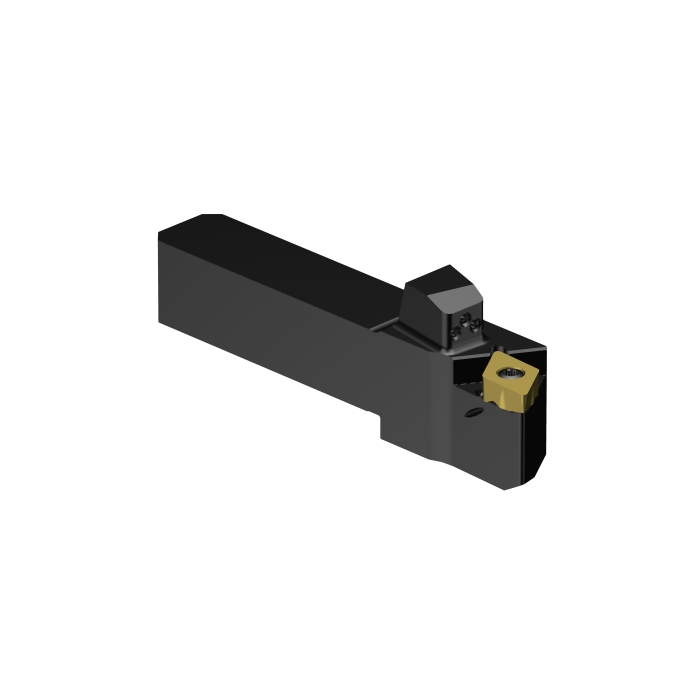

Sandvik Coromant QS-TR-D13JCL 12HP CoroTurn™ TR QS shank tool for turning

Name: Sandvik Coromant QS-TR-D13JCL 12HP CoroTurn™ TR QS shank tool for turning
SKU: 6766785
Price: 4951.90 ZAR
Availability: OutOfStock

Be the first to review this product

R 4 951,90 inc. vat

Out of stock

SKU

6766785

CoroTurn® TR QS shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® TR QS shank tool for turning

More Information

More Information
CP - Coolant Pressure	15000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	111mm
TQ - Torque	3Nm
WT - Weight Of Item	0.284kg
OAL - Overall Length	111mm
OHX - Maximum Overhang	61mm
LSC - Clamping Length	69mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	30deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	42mm
WF - Functional Width	19.558mm
HF - Functional Height	19.05mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	11mm
RE - Corner Radius	0.79375mm
Insert Thickness	5.525mm
H - Shank Height	19.05mm
B - Shank Width	19.05mm
HBL - Head Bottom Offset Length	42mm
ORDCODE	QS-TR-D13JCL 12HP
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1212_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	8
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:26:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TD13_1
Hand	L
MIID - Master Insert Identification	TR-DC1308
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	D
SSC - Insert Seat Size Code	13
CNT - Coolant Entry Thread Size	G 1/8-28
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
