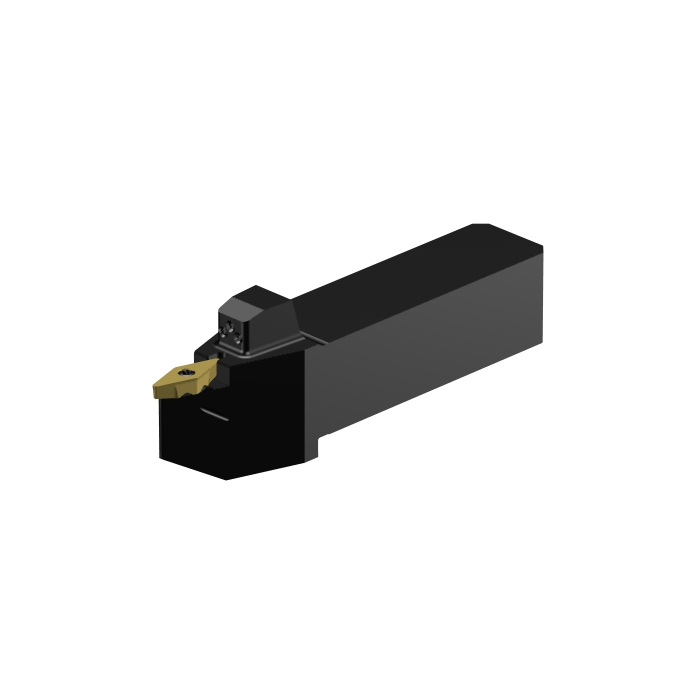

Sandvik Coromant QS-TR-V13VBN 16HP CoroTurn™ TR QS shank tool for turning

R 6 337,65 inc. vat
In stock
SKU
6766796
CoroTurn® TR QS shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® TR QS shank tool for turning
More Information
CP - Coolant Pressure 15000000Pa
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 129mm
TQ - Torque 2Nm
WT - Weight Of Item 0.53kg
OAL - Overall Length 129mm
OHX - Maximum Overhang 70mm
LSC - Clamping Length 84mm
KAPR - Tool Cutting Edge Angle 72.5deg
RMPX - Maximum Ramping Angle 70deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 45mm
WF - Functional Width 13.282mm
HF - Functional Height 25.4mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 5deg
IC - Inscribed Circle Diameter 8mm
RE - Corner Radius 0.79375mm
Insert Thickness 4.525mm
H - Shank Height 25.4mm
B - Shank Width 25.4mm
HBL - Head Bottom Offset Length 45mm
ORDCODE QS-TR-V13VBN 16HP
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B1616_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 8
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 16:26:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_TH13_1
Hand N
MIID - Master Insert Identification TR-VB1308
IFS - Insert Mounting Style Code 8
SC - Insert Shape Code V
SSC - Insert Seat Size Code 13
CNT - Coolant Entry Thread Size G 1/8-28
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
