Sandvik Coromant R123E2-0200-1501-CS 1125 CoroCut™ 1-2 insert for parting

R 577,30 inc. vat
In stock
SKU
5741472

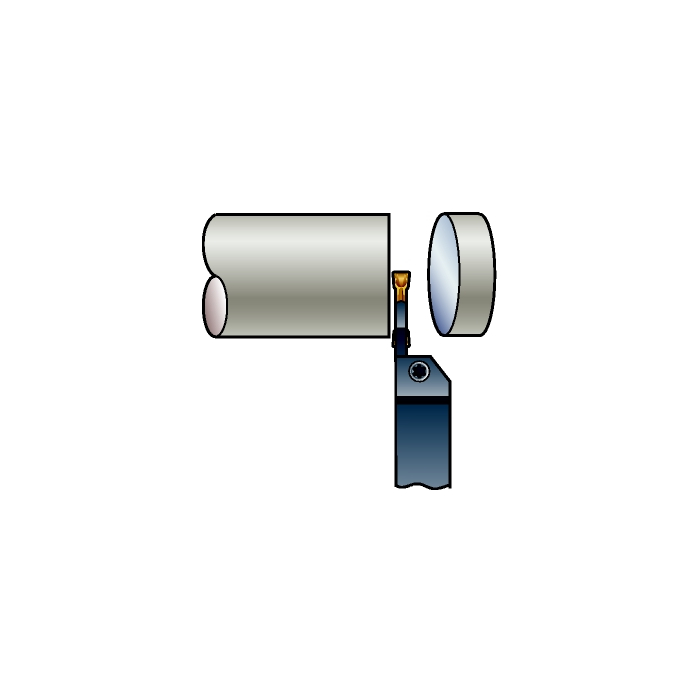

CoroCut® 1-2 insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for parting
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.5g
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 5deg
Insert Thickness 4.3321mm
CW - Cutting Width 2mm
CWTOLL - Cutting Width Lower Tolerance -0.02mm
CWTOLU - Cutting Width Upper Tolerance 0.02mm
REL - Corner Radius Left 0.1mm
RER - Corner Radius Right 0.1mm
CDX - Cutting Depth Maximum 19.4mm
PSIRR - Major Right Hand Cutting Edge Angle 15deg
RETOLL - Corner Radius Lower Tolerance -0.05mm
RETOLU - Corner Radius Upper Tolerance 0.05mm
ORDCODE R123E2-0200-1501-CS 1125
CHANGEDATE 2022-06-23 10:37:00.000
Hand R
IFS - Insert Mounting Style Code 7
SSC - Insert Seat Size Code E
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CCE2_1
Grade 1125
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation CS
CEDC - Cutting Edge Count 2
