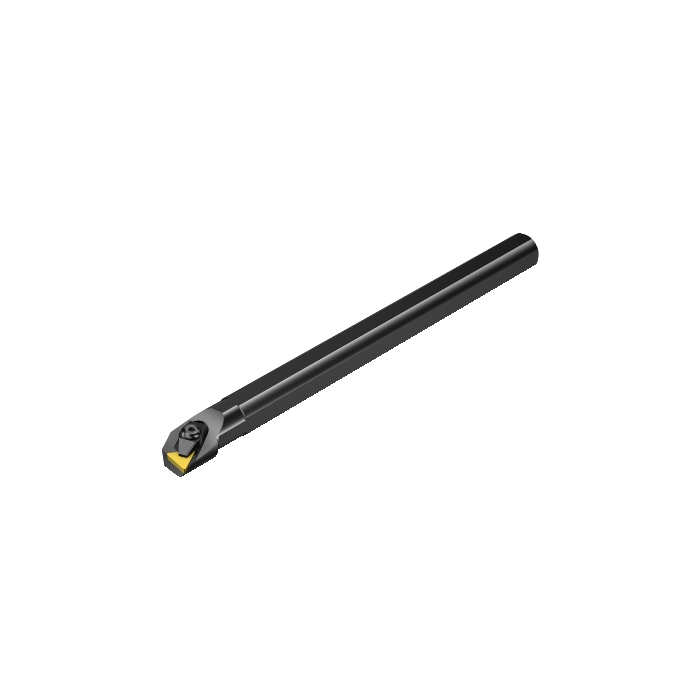

Sandvik Coromant R136.9-10-06 T-Max™ S boring bar for turning
R 2 178,10
inc. vat
In stock
SKU
5741764
T-Max® S boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S boring bar for turning
| DCON - Connection Diameter | 10mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 125mm |
| BD - Body Diameter | 10mm |
| TQ - Torque | 2Nm |
| WT - Weight Of Item | 0.086kg |
| OAL - Overall Length | 125mm |
| OHX - Maximum Overhang | 40mm |
| LSC - Clamping Length | 106mm |
| KAPR - Tool Cutting Edge Angle | 91deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 12mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 20mm |
| WF - Functional Width | 6.5mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | -7deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 3.96875mm |
| RE - Corner Radius | 0.198437mm |
| Insert Thickness | 1.5875mm |
| H - Shank Height | 9mm |
| ORDCODE | R136.9-10-06 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G1000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-07 01:40:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TC0601_1 |
| Hand | R |
| MIID - Master Insert Identification | TCGR 06 01 02 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 06 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
