Sandvik Coromant R166.0G-16RN01-060 4125 T-Max™ U-Lock insert for thread turning
R 446,20
inc. vat
Out of stock
SKU
5742031
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.3g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |

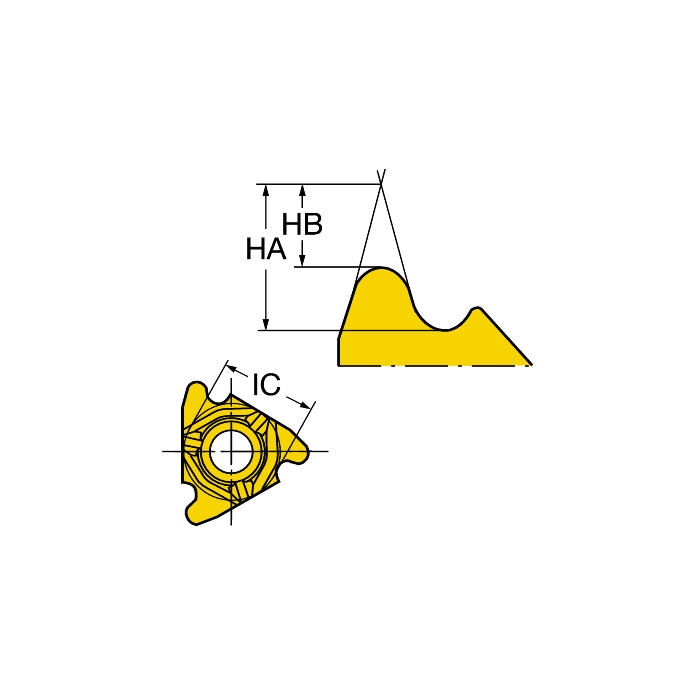

| HA - Theoretical Thread Height | 4.98mm |
| HB - Thread Height Difference | 2.86mm |
| TPI - Threads Per Inch | 6 |
| PDX - Profile Distance Ex | 1.5mm |
| PDY - Profile Distance Ey | 1.43mm |
| ORDCODE | R166.0G-16RN01-060 4125 |
| CHANGEDATE | 2021-12-21 06:29:00.000 |
| STDNO - Standard Number | DIN 405 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TBE16R_1 |
| Grade | 4125 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | A |
| THFT - Thread Form Type | RN30 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | EXT |
| TCTR - Thread Tolerance Class | IT 7-6 |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
