Sandvik Coromant R166.0G-16TR01F200 1020 T-Max™ U-Lock insert for thread turning
R 531,30
inc. vat
Out of stock
SKU
5742027
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.5g |
| AN - Clearance Angle Major | 0deg |

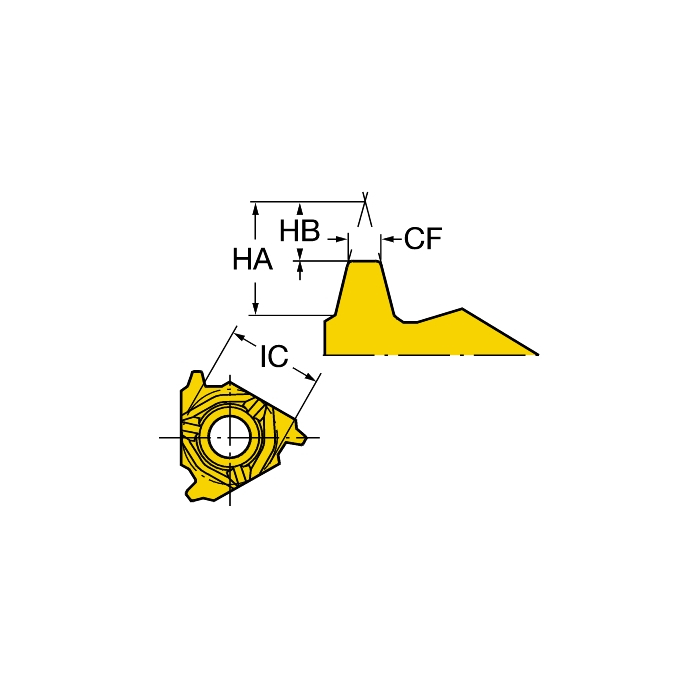

| IC - Inscribed Circle Diameter | 9.525mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| HA - Theoretical Thread Height | 2.44mm |
| HB - Thread Height Difference | 1.13mm |
| TP - Thread Pitch | 2mm |
| PDX - Profile Distance Ex | 1.1mm |
| PDY - Profile Distance Ey | 1.32mm |
| ORDCODE | R166.0G-16TR01F200 1020 |
| CHANGEDATE | 2021-12-21 06:29:00.000 |
| STDNO - Standard Number | DIN 103-1977 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TBE16R_1 |
| Grade | 1020 |
| COATING | PVD TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | F |
| THFT - Thread Form Type | TP30 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | EXT |
| TCTR - Thread Tolerance Class | IT 7 |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
