Sandvik Coromant R166.0G-16UN02-120 1020 T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant R166.0G-16UN02-120 1020 T-Max™ U-Lock insert for thread turning
SKU: 5742105
Price: 640.55 ZAR
Availability: OutOfStock

Be the first to review this product

R 640,55 inc. vat

Out of stock

SKU

5742105

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	4.2g
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
D1 - Fixing Hole Diameter	4.4mm

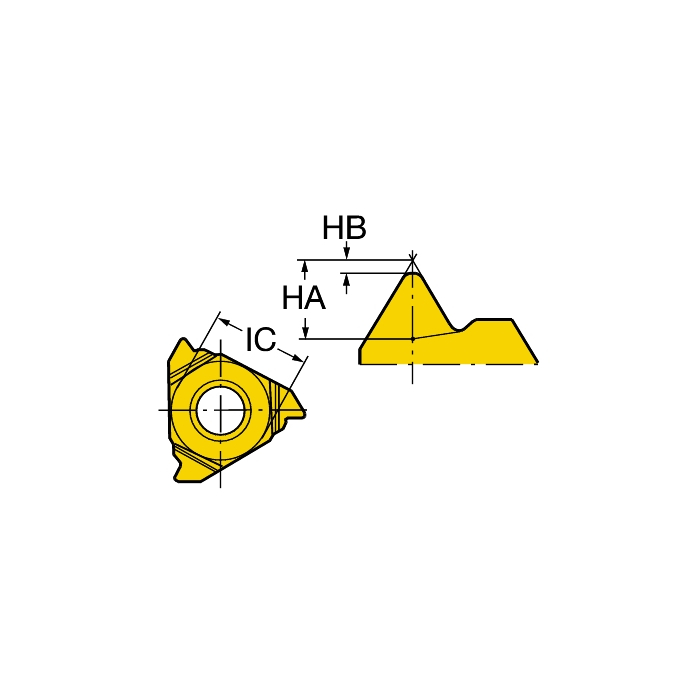

HA - Theoretical Thread Height	1.58mm
HB - Thread Height Difference	0.28mm
TPI - Threads Per Inch	12
PDX - Profile Distance Ex	3.1mm
PDY - Profile Distance Ey	1.91mm
ORDCODE	R166.0G-16UN02-120 1020
CHANGEDATE	2021-12-21 06:33:00.000
STDNO - Standard Number	ISO 5864-1978
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBE16R_1
Grade	1020
COATING	PVD TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	UN60
TPT - Thread Profile Type	F
TTP - Thread Type	EXT
TCTR - Thread Tolerance Class	2A
CEDC - Cutting Edge Count	3
NT - Tooth Count	2
