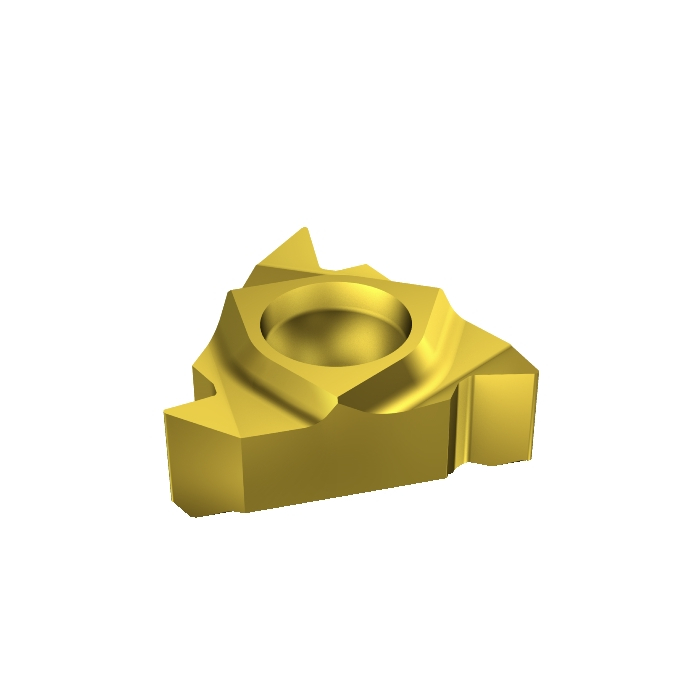

Sandvik Coromant R166.0L-11VW01-001 4125 T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant R166.0L-11VW01-001 4125 T-Max™ U-Lock insert for thread turning
SKU: 5742046
Price: 446.20 ZAR
Availability: OutOfStock

Be the first to review this product

R 446,20 inc. vat

Out of stock

SKU

5742046

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	1.6g
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.11mm
Insert Thickness	3.175mm
D1 - Fixing Hole Diameter	2.8mm
TPIN - Minimum Threads Per Inch	14
TPIX - Maximum Threads Per Inch	28
HA - Theoretical Thread Height	1.6mm
HB - Thread Height Difference	0.12mm
PDX - Profile Distance Ex	0.95mm
PDY - Profile Distance Ey	0.68mm
ORDCODE	R166.0L-11VW01-001 4125
CHANGEDATE	2022-06-23 10:42:00.000
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	11
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBI11R_1
Grade	4125
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	VP55
TPT - Thread Profile Type	P
TTP - Thread Type	INT
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
