Sandvik Coromant R166.0L-16AC01F080 1020 T-Max™ U-Lock insert for thread turning

R 531,30 inc. vat
Out of stock
SKU
5742058
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.3g
AN - Clearance Angle Major 0deg

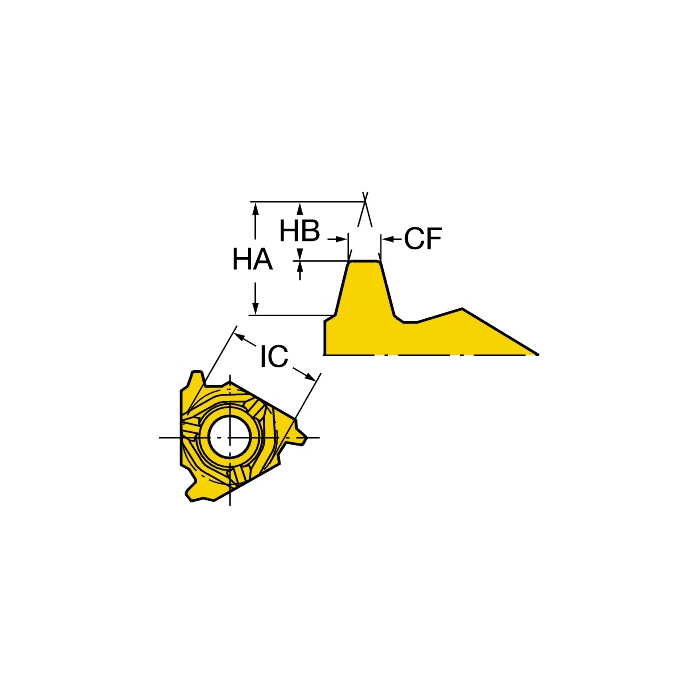

IC - Inscribed Circle Diameter 9.525mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
HA - Theoretical Thread Height 3.9mm
HB - Thread Height Difference 2mm
TPI - Threads Per Inch 8
PDX - Profile Distance Ex 1.5mm
PDY - Profile Distance Ey 1.19mm
ORDCODE R166.0L-16AC01F080 1020
CHANGEDATE 2021-12-21 06:29:00.000
STDNO - Standard Number ANSI B1.5-1988
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_TBI16R_1
Grade 1020
COATING PVD TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation F
THFT - Thread Form Type AC29
TPT - Thread Profile Type F
TTP - Thread Type INT
TCTR - Thread Tolerance Class 2G
CEDC - Cutting Edge Count 3
NT - Tooth Count 1
