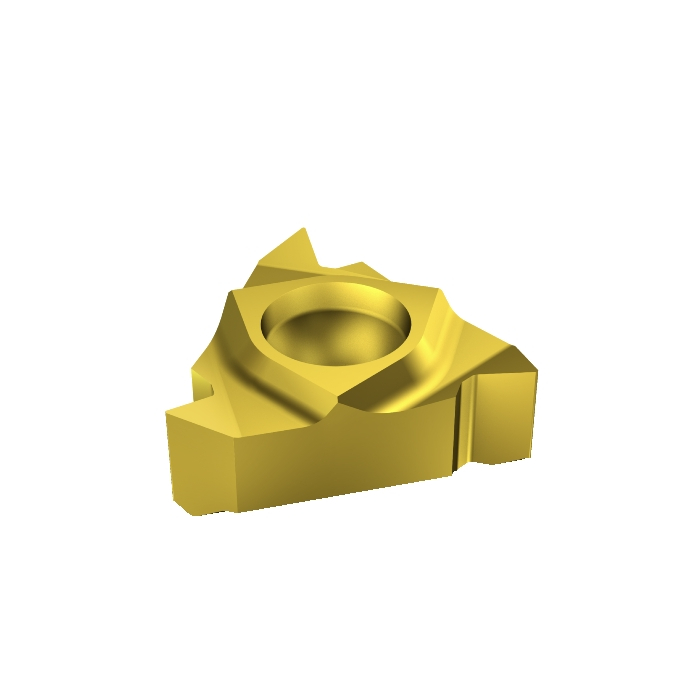

Sandvik Coromant R166.0L-16VM01C001 1020 T-Max™ U-Lock insert for thread turning
R 424,35
inc. vat
Out of stock
SKU
5742081
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.4g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.06mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| TPN - Minimum Thread Pitch | 1mm |
| TPX - Maximum Thread Pitch | 2mm |
| TPIN - Minimum Threads Per Inch | 12 |
| TPIX - Maximum Threads Per Inch | 24 |
| HA - Theoretical Thread Height | 1.45mm |
| HB - Thread Height Difference | 0.06mm |
| PDX - Profile Distance Ex | 1mm |
| PDY - Profile Distance Ey | 1.01mm |
| ORDCODE | R166.0L-16VM01C001 1020 |
| CHANGEDATE | 2021-12-21 06:29:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TBI16R_1 |
| Grade | 1020 |
| COATING | PVD TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | C |
| THFT - Thread Form Type | VP60 |
| TPT - Thread Profile Type | P |
| TTP - Thread Type | INT |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
