Sandvik Coromant R166.0L-16VW01F002 1020 T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant R166.0L-16VW01F002 1020 T-Max™ U-Lock insert for thread turning
SKU: 5742093
Price: 424.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 424,35 inc. vat

Out of stock

SKU

5742093

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information

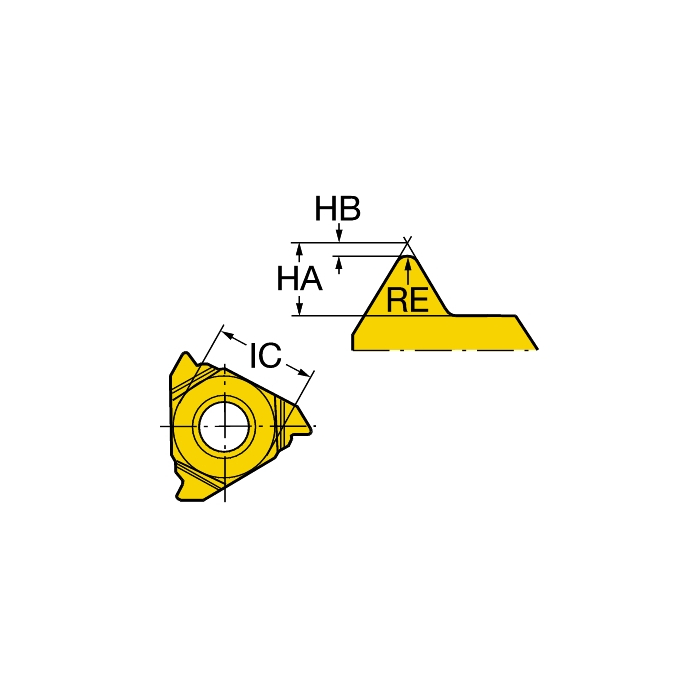

KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	4.4g
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.23mm
Insert Thickness	3.96875mm
D1 - Fixing Hole Diameter	4.4mm
TPIN - Minimum Threads Per Inch	8
TPIX - Maximum Threads Per Inch	14
HA - Theoretical Thread Height	2.8mm
HB - Thread Height Difference	0.25mm
PDX - Profile Distance Ex	1.5mm
PDY - Profile Distance Ey	1.01mm
ORDCODE	R166.0L-16VW01F002 1020
CHANGEDATE	2021-12-21 06:29:00.000
Hand	R
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBI16R_1
Grade	1020
COATING	PVD TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	F
THFT - Thread Form Type	VP55
TPT - Thread Profile Type	P
TTP - Thread Type	INT
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
