R 424,35
inc. vat
In stock
SKU
5742290

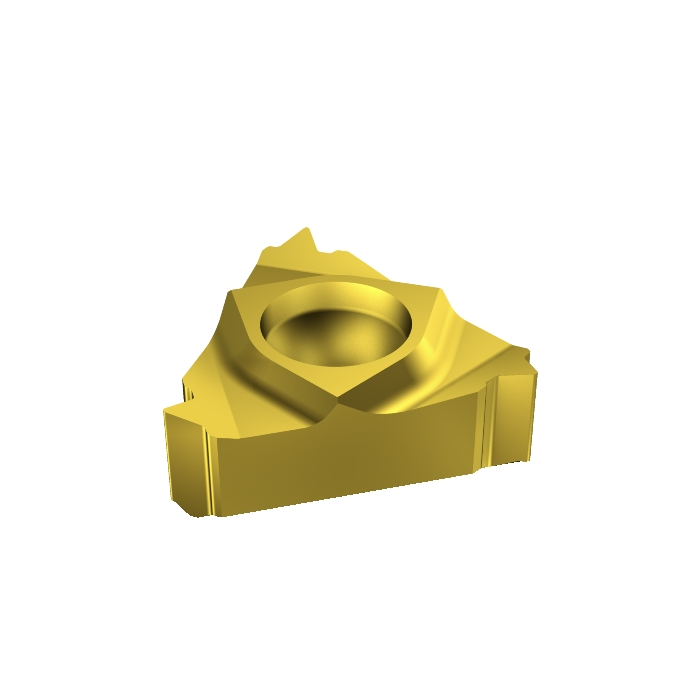

T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 4.5g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 9.525mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
HA - Theoretical Thread Height | 1.67mm |
HB - Thread Height Difference | 0.3mm |
TPI - Threads Per Inch | 12 |
PDX - Profile Distance Ex | 1.4mm |
PDY - Profile Distance Ey | 1.3mm |
ORDCODE | R166.0L-16WH01-120 1020 |
CHANGEDATE | 2021-12-21 06:35:00.000 |
STDNO - Standard Number | BS-84-1956 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TBI16R_1 |
Grade | 1020 |
COATING | PVD TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | A |
THFT - Thread Form Type | WH55 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | CLASSA |
CEDC - Cutting Edge Count | 3 |
NT - Tooth Count | 1 |
