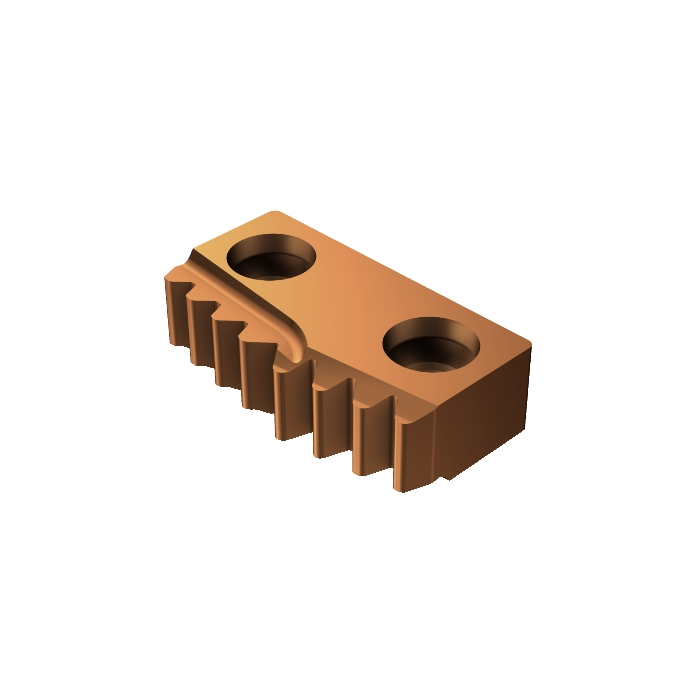

Sandvik Coromant R166.39L-24RD04-100 4125 T-Max™ Twin-Lock insert for thread turning
Next
Sandvik Coromant R166.39L-24RD04-080 4125 T-Max™ Twin-Lock insert for thread turning
Previous
![Sandvik Coromant R166.39L-24RD04-100 4125 T-Max™ Twin-Lock insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/49084fb5d/sandvik-coromant-r166-39l-24rd04-100-4125-t-maxtm-twin-lock-insert-for-thread-turning.jpg)
![Sandvik Coromant R166.39L-24RD04-080 4125 T-Max™ Twin-Lock insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/490829e20/sandvik-coromant-r166-39l-24rd04-080-4125-t-maxtm-twin-lock-insert-for-thread-turning.jpg)
R 1 084,45
inc. vat
In stock
SKU
5742738
T-Max® Twin-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Twin-Lock insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 19.2g |
AN - Clearance Angle Major | 0deg |
Insert Thickness | 6.35mm |
D1 - Fixing Hole Diameter | 4.675mm |
HA - Theoretical Thread Height | 1.76mm |
HB - Thread Height Difference | 0.36mm |
TPI - Threads Per Inch | 10 |
PDX - Profile Distance Ex | 9.41mm |
PDY - Profile Distance Ey | 12.098mm |
TG - Taper Gradient | 0.0625 |
INSL - Insert Length | 24mm |
ORDCODE | R166.39L-24RD04-100 1125 |
CHANGEDATE | 2021-12-20 23:25:00.000 |
STDNO - Standard Number | API SPEC. 5B |
Hand | R |
IFS - Insert Mounting Style Code | 2 |
SSC - Insert Seat Size Code | 24 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TGL24_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | A |
THFT - Thread Form Type | APR60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
CEDC - Cutting Edge Count | 2 |
NT - Tooth Count | 4 |
