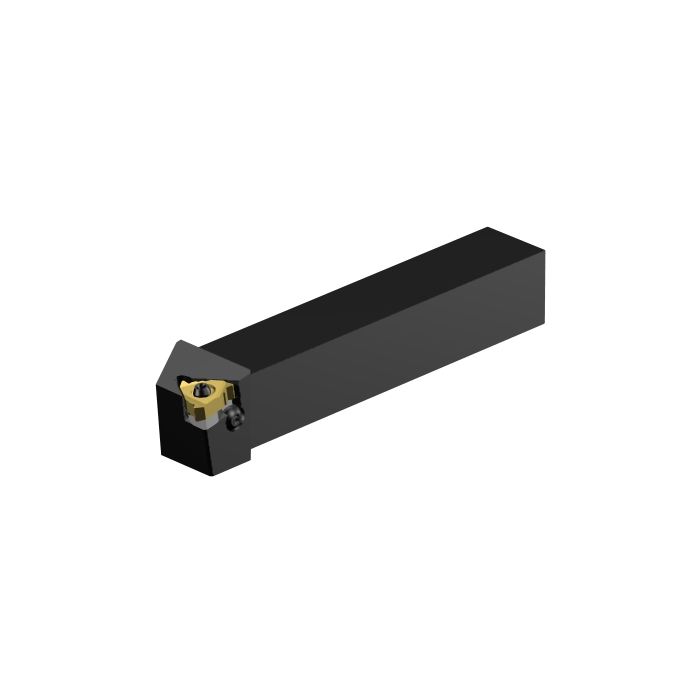

Sandvik Coromant R166.4FG-2020-16 T-Max™ U-Lock shank tool for thread turning
R 2 576,00
inc. vat
Out of stock
SKU
5742705
T-Max® U-Lock shank tool for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock shank tool for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 125mm |
| TQ - Torque | 1.7Nm |
| WT - Weight Of Item | 0.377kg |
| OAL - Overall Length | 125mm |
| OHX - Maximum Overhang | 21.6mm |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 25mm |
| HF - Functional Height | 20mm |
| GAMO - Orthogonal Rake Angle | -10deg |
| LAMS - Inclination Angle | -1deg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| Insert Thickness | 3.96875mm |
| H - Shank Height | 20mm |
| B - Shank Width | 20mm |
| ALP - Axial Clearance Angle | -10deg |
| THCA - Thread Helix Correction Angle | 1deg |
| ORDCODE | R166.4FG-2020-16 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2020_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-18 11:20:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TBE16L_2 |
| Hand | R |
| MIID - Master Insert Identification | R166.0G-16.. |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
