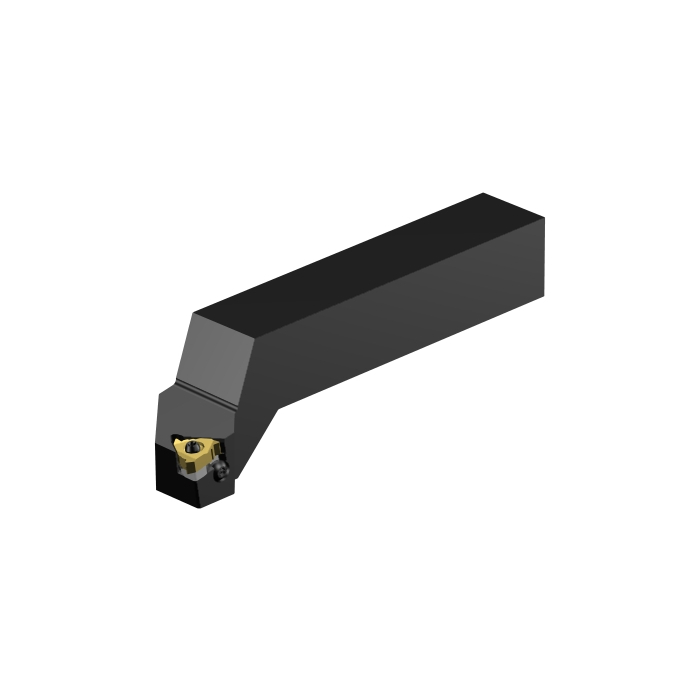

Sandvik Coromant R166.4FGZ-2525-16 T-Max™ U-Lock shank tool for thread turning

Name: Sandvik Coromant R166.4FGZ-2525-16 T-Max™ U-Lock shank tool for thread turning
SKU: 5742664
Price: 3322.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 3 322,35 inc. vat

Out of stock

SKU

5742664

T-Max® U-Lock shank tool for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock shank tool for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	180deg
LF - Functional Length	150mm
TQ - Torque	1.7Nm
WT - Weight Of Item	0.687kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	22.2mm
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	32mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	-10deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
H - Shank Height	25mm
B - Shank Width	25mm
OAH - Overall Height	44mm
ALP - Axial Clearance Angle	-10deg
THCA - Thread Helix Correction Angle	1deg
ORDCODE	R166.4FGZ-2525-16
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-01-18 11:20:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TBE16L_2
Hand	R
MIID - Master Insert Identification	R166.0G-16..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
