Sandvik Coromant R566.39KF-404527-24 T-Max™ Twin-Lock head for thread turning
R 11 449,40
inc. vat
Out of stock
SKU
5747100
T-Max® Twin-Lock head for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Twin-Lock head for thread turning
| DCON - Connection Diameter | 40mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 44.2mm |
| TQ - Torque | 1.7Nm |
| WT - Weight Of Item | 0.322kg |
| OAL - Overall Length | 48mm |
| OHX - Maximum Overhang | 44.2mm |
| DMIN - Minimum Bore Diameter | 60.3mm |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 25.8mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | -10deg |
| LAMS - Inclination Angle | -1deg |
| AN - Clearance Angle Major | 0deg |
| Insert Thickness | 6.35mm |
| ALP - Axial Clearance Angle | -10deg |
| THCA - Thread Helix Correction Angle | 1deg |
| ORDCODE | R566.39KF-404527-24 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 04:42:00.000 |
| MTP - Clamping Type Code | P |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TGL24_1 |
| Hand | R |

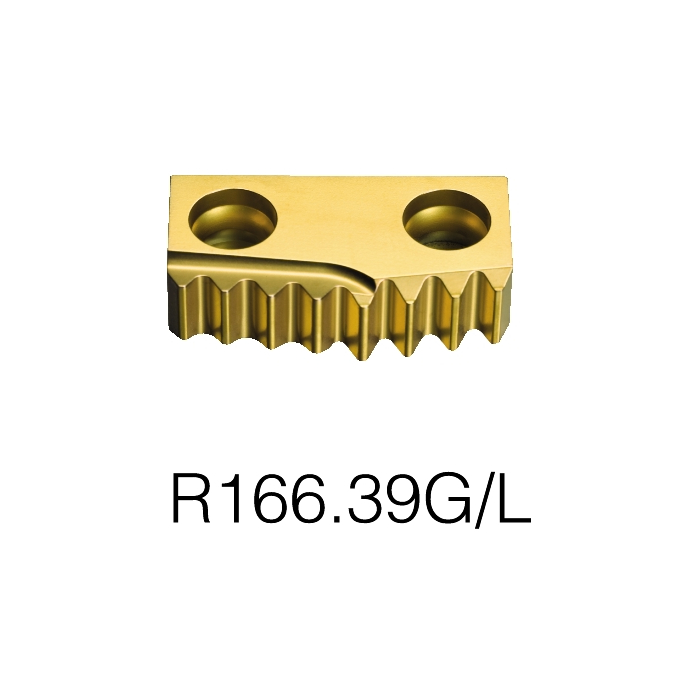

| MIID - Master Insert Identification | R166.39L-24.. |
| IFS - Insert Mounting Style Code | 2 |
| SSC - Insert Seat Size Code | 24 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
