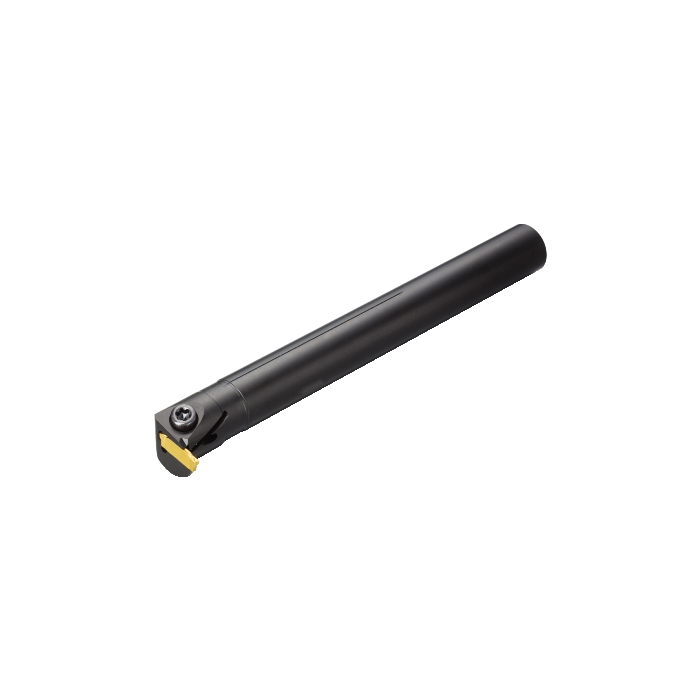

Sandvik Coromant RAG123D020-12B CoroCut™ 1-2 boring bar for grooving

Name: Sandvik Coromant RAG123D020-12B CoroCut™ 1-2 boring bar for grooving
SKU: 5738707
Price: 3977.85 ZAR
Availability: InStock

R 3 977,85 inc. vat

In stock

SKU

5738707

CoroCut® 1-2 boring bar for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 boring bar for grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	180mm
BD - Body Diameter	19.05mm
TQ - Torque	3Nm
WT - Weight Of Item	0.38kg
OAL - Overall Length	180mm
OHX - Maximum Overhang	76.2mm
LSC - Clamping Length	103.8mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	32mm
BAWS - Workpiece Side Body Angle	90deg
OHN - Minimum Overhang	30mm
WF - Functional Width	15.025mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.1mm
CW - Cutting Width	1.5mm
CDX - Cutting Depth Maximum	5mm
ORDCODE	RAG123D020-12B
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:36:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCD2_2
Hand	R
MIID - Master Insert Identification	N123D2-0150-0002-CM
SSC - Insert Seat Size Code	D
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
