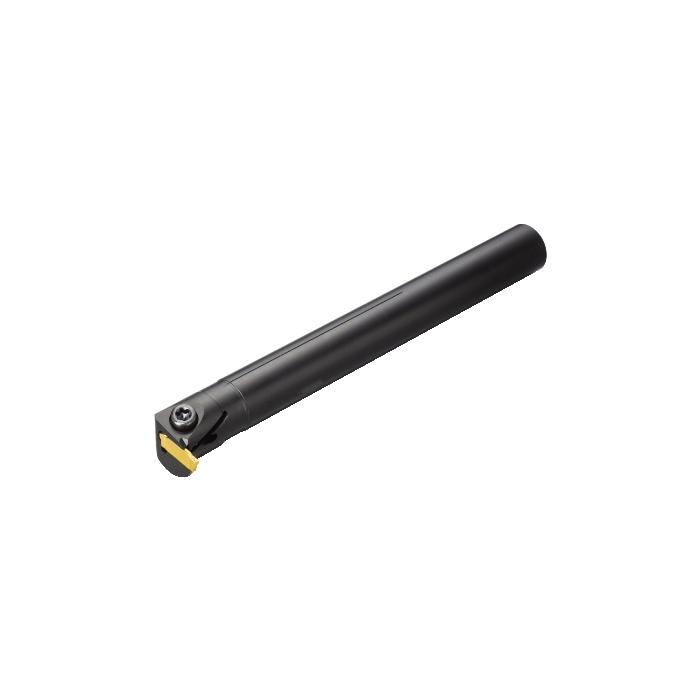

Sandvik Coromant RAG123H10-32B CoroCut™ 1-2 boring bar for grooving
Next
Sandvik Coromant RAG123H051-32B CoroCut™ 1-2 boring bar for grooving
Previous
![Sandvik Coromant RAG123H10-32B CoroCut™ 1-2 boring bar for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/478775a23/sandvik-coromant-rag123h10-32b-corocuttm-1-2-boring-bar-for-grooving.jpg)
![Sandvik Coromant RAG123H051-32B CoroCut™ 1-2 boring bar for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47874fd11/sandvik-coromant-rag123h051-32b-corocuttm-1-2-boring-bar-for-grooving.jpg)
R 4 548,25
inc. vat
In stock
SKU
5739616
CoroCut® 1-2 boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 boring bar for grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 200mm |
BD - Body Diameter | 25mm |
TQ - Torque | 4.5Nm |
WT - Weight Of Item | 717g |
OAL - Overall Length | 200mm |
OHX - Maximum Overhang | 100mm |
LSC - Clamping Length | 100mm |
KAPR - Tool Cutting Edge Angle | 90deg |
DMIN - Minimum Bore Diameter | 32mm |
BAWS - Workpiece Side Body Angle | 90deg |
OHN - Minimum Overhang | 35mm |
WF - Functional Width | 19.25mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
CW - Cutting Width | 4mm |
CDX - Cutting Depth Maximum | 7mm |
ORDCODE | RAG123H07-25B |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G2500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:38:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_4 |
Hand | R |
MIID - Master Insert Identification | N123H2-0400- GM |
SSC - Insert Seat Size Code | H |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
LOCAP - Location Aid Property | True |
