Sandvik Coromant RCHT 10 T3 M0-PL 1025 CoroMill™ 200 insert for milling
R 208,15
inc. vat
In stock
SKU
5739915
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3g |
| AN - Clearance Angle Major | 7deg |

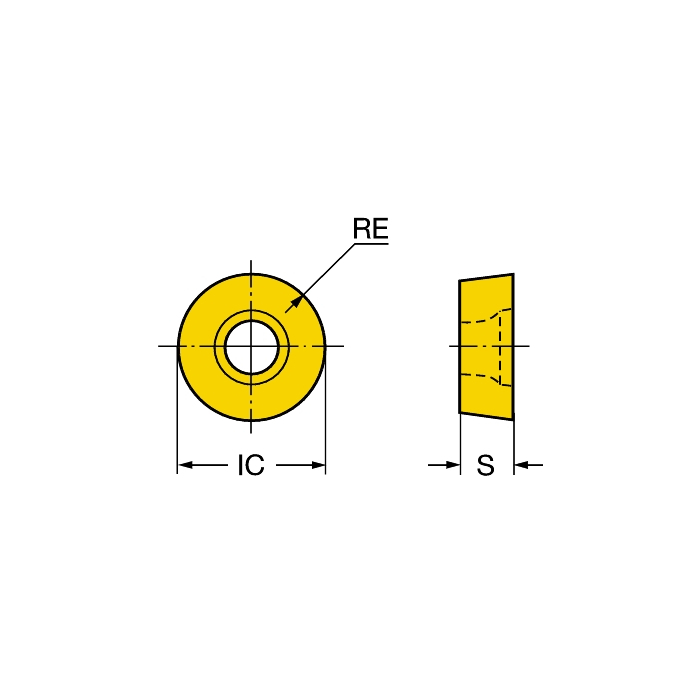

| IC - Inscribed Circle Diameter | 10mm |
| RE - Corner Radius | 5mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| APMX - Depth Of Cut Maximum | 5mm |
| ORDCODE | RCHT 10 T3 M0-PL 1025 |
| CHANGEDATE | 2022-03-28 14:37:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 10 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC10T3M_1 |
| Grade | 1025 |
| COATING | PVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PL |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
