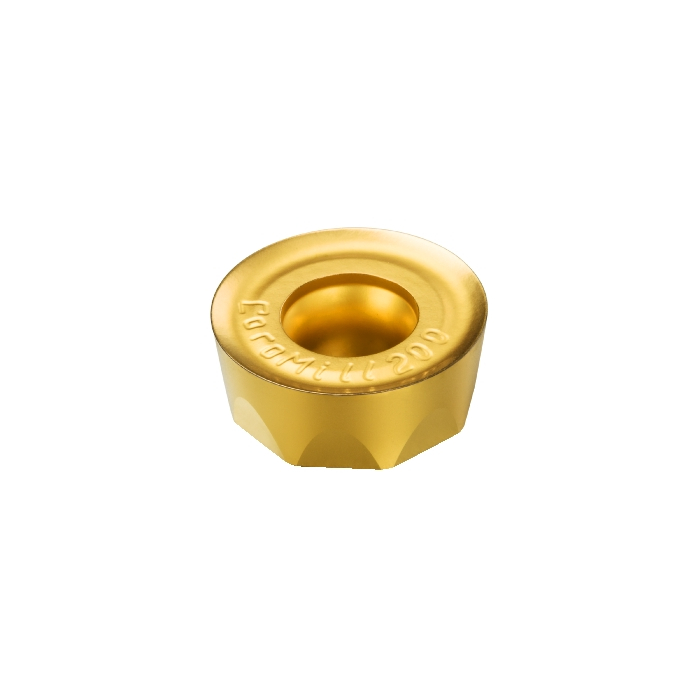

Sandvik Coromant RCHT 16 06 M0-ML 2030 CoroMill™ 200 insert for milling
R 388,70
inc. vat
In stock
SKU
5740015
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 13g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 16mm |
| RE - Corner Radius | 8mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 5.5mm |
| APMX - Depth Of Cut Maximum | 2.34mm |
| ORDCODE | RCHT 16 06 M0-ML 2030 |
| CHANGEDATE | 2021-12-17 18:31:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC1606M_1 |
| Grade | 2030 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | ML |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | False |
