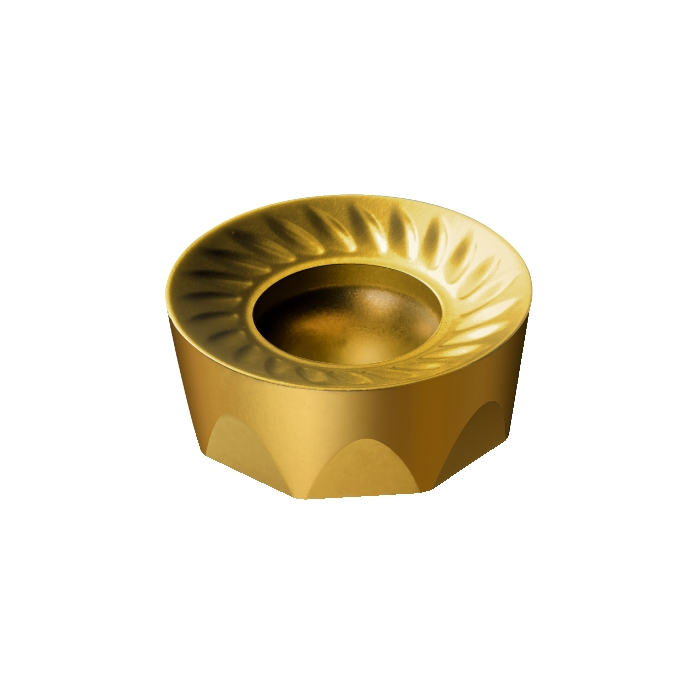

Sandvik Coromant RCKT 20 06 M0-PM S40T CoroMill™ 200 insert for milling

R 426,65 inc. vat
In stock
SKU
5853556
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.02kg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 20mm
RE - Corner Radius 10mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 6.5mm
APMX - Depth Of Cut Maximum 2.93mm
ORDCODE RCKT 20 06 M0-PM S40T
CHANGEDATE 2021-12-17 20:23:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 20
CUTINT_SIZESHAPE - Insert Size And Shape MISO_RC2006M_1
Grade S40T
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
