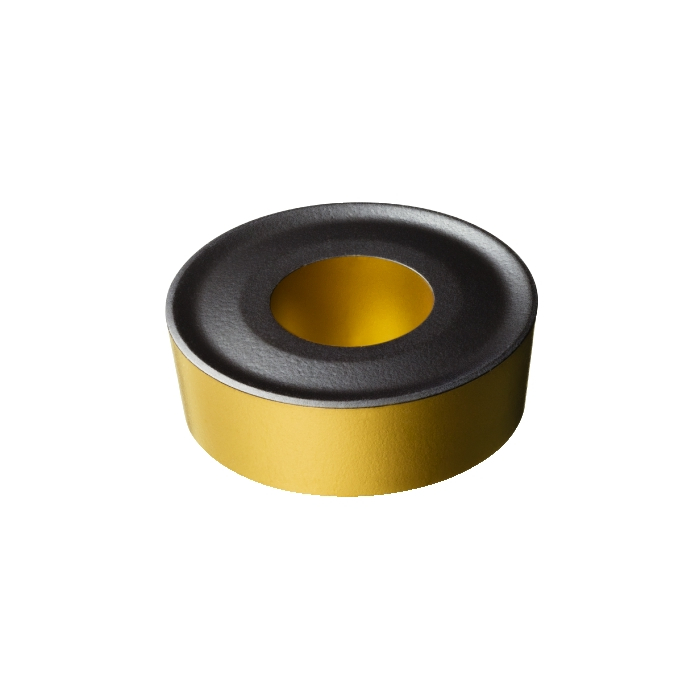

Sandvik Coromant RCMX 10 03 00 4335 T-Max™ P insert for turning
R 148,35
inc. vat
In stock
SKU
7081041
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.003kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 10mm |
| RE - Corner Radius | 5mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 3.6mm |
| BN - Face Land Width | 0.2mm |
| GB - Face Land Angle | 15deg |
| ORDCODE | RCMX 10 03 00 4335 |
| CHANGEDATE | 2022-09-23 20:29:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 10 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC1003M_1 |
| Grade | 4335 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 00 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
