Sandvik Coromant RCMT 20 06 M0 4215 CoroTurn™ 107 insert for turning Previous Sandvik Coromant RCMT 20 06 M0 4215 CoroTurn™ 107 insert for turning

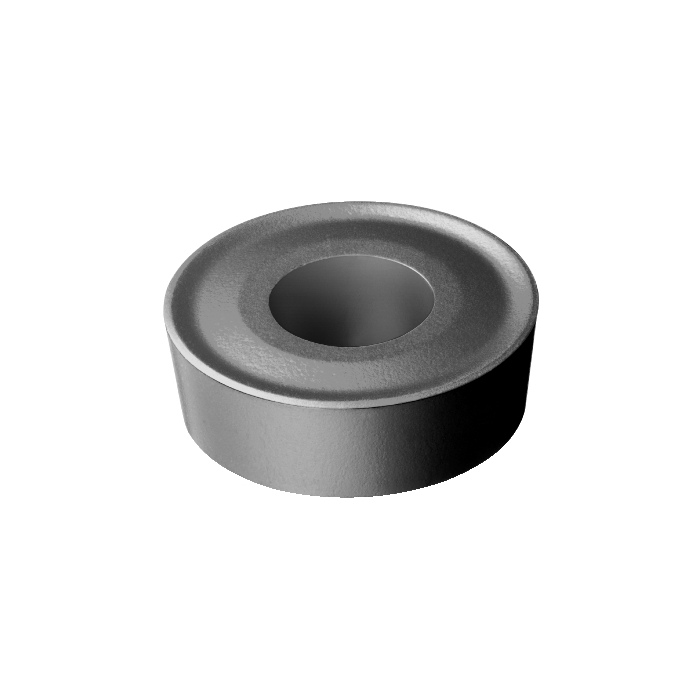

Sandvik Coromant RCMX 16 06 00 H13A T-Max™ P insert for turning

R 246,10 inc. vat
In stock
SKU
5740835
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 14.7g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 16mm
RE - Corner Radius 8mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 5.2mm
BN - Face Land Width 0.25mm
GB - Face Land Angle 15deg
ORDCODE RCMX 16 06 00 H13A
CHANGEDATE 2021-12-17 18:36:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code R
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_RC1606M_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation 00
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
