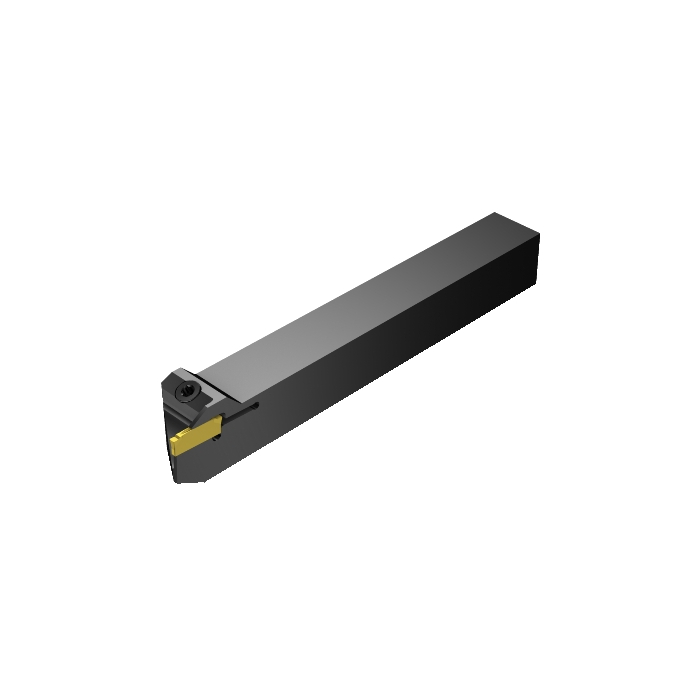

Sandvik Coromant RF123H25-1616B CoroCut™ 1-2 shank tool for parting & grooving
Next
Sandvik Coromant RF123E15-2525B CoroCut™ 1-2 shank tool for parting & grooving
Previous
![Sandvik Coromant RF123H25-1616B CoroCut™ 1-2 shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/481876e1a/sandvik-coromant-rf123h25-1616b-corocuttm-1-2-shank-tool-for-parting-grooving.jpg)
![Sandvik Coromant RF123E15-2525B CoroCut™ 1-2 shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/481848c3e/sandvik-coromant-rf123e15-2525b-corocuttm-1-2-shank-tool-for-parting-grooving.jpg)
R 2 406,95
inc. vat
In stock
SKU
5740870
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 125mm |
TQ - Torque | 2.5Nm |
WT - Weight Of Item | 240g |
OAL - Overall Length | 125mm |
OHX - Maximum Overhang | 28.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 16mm |
HF - Functional Height | 16mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
H - Shank Height | 16mm |
CW - Cutting Width | 2mm |
B - Shank Width | 16mm |
CDX - Cutting Depth Maximum | 17mm |
CUTDIA - Work Piece Parting Diameter Maximum | 34mm |
ORDCODE | RF123E17-1616B-S |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A1616_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-13 15:13:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCE2_2 |
Hand | R |
MIID - Master Insert Identification | N123E2-0200-0002-CM |
SSC - Insert Seat Size Code | E |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
