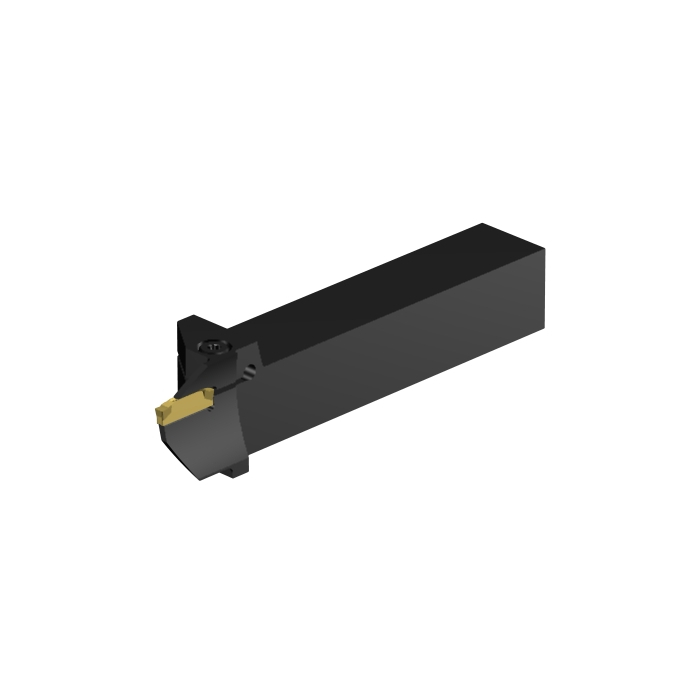

Sandvik Coromant RF123G19-2525B-054B CoroCut™ 1-2 shank tool for face grooving

R 2 941,70 inc. vat
In stock
SKU
5741095
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 3.4Nm
WT - Weight Of Item 0.653kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 40mm
LSC - Clamping Length 110mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 26mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.3321mm
H - Shank Height 25mm
CW - Cutting Width 3mm
B - Shank Width 25mm
CDX - Cutting Depth Maximum 19mm
DAXN - Minimum Axial Groove Outside Diameter 60mm
DAXX - Maximum Axial Groove Outside Diameter 75mm
ORDCODE RF123G19-2525B-054B
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:44:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCG2_7
Hand R
MIID - Master Insert Identification N123G2-0300-0003-TF
SSC - Insert Seat Size Code G
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
